Description

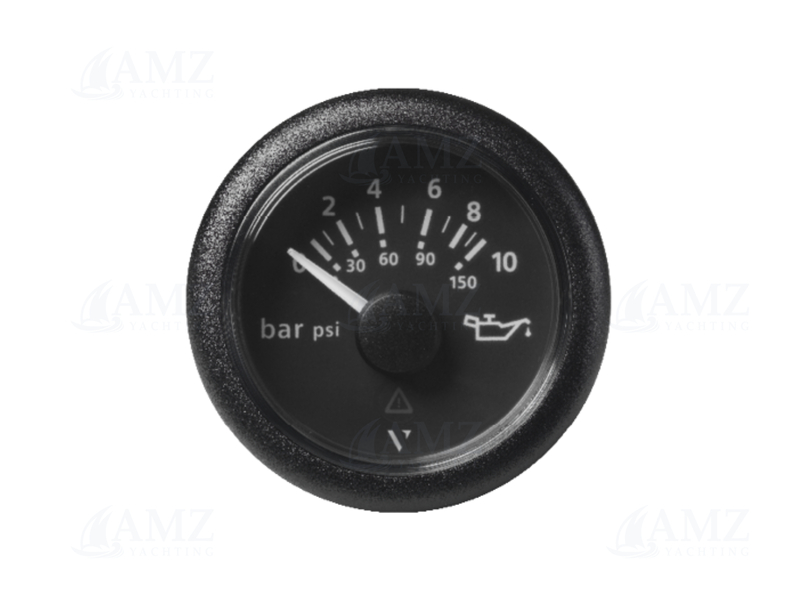

Gauge that indicates the oil pressure in the engine.
Specifications
- Input supply voltage : 10-32 V DC
- Nominal voltage : 12V|24V
- Consumption : <140 mA
- Analogue input type : Resistive (Ω)
- Signal resistance range : 10-184Ω
- Connector type : Hirschmann 8pin
- Color : Black
- Diameter : 52mm
Package content:
1x Engine oil pressure gauge (A2C53413313)
1x adapter cable 8pole
1x bezel
1x rubber seal
1x spinlock
1x safety instructions
Discontinued/Old part numbers:
350-040-015 ; A2C60100561
350-020-001 ; N02 125 410
N02 125 510 ; N02 120 406
N02 124 016 ; N02 120 308
N02 124 130 ; 352.471/008/008
N02 124 416 ; 352.271/005/014
N02 124 530
