Actisense

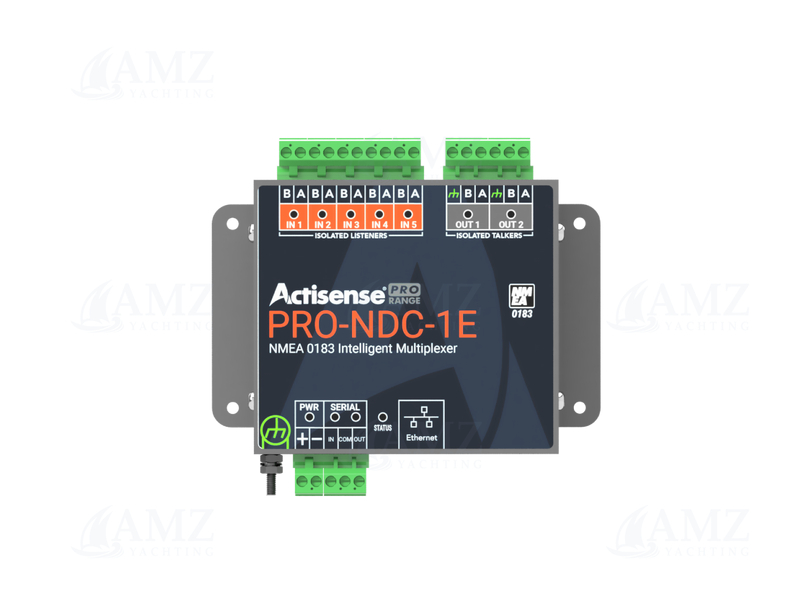

NMEA 0183 Multiplexer
SKU: PRO-NDC-1E
Available
Add to Cart
Years
Warranty
Official
Distributor
Description
The PRO-NDC-1E is more than just an NMEA 0183 Combiner/ Multiplexer; it provides an installer with a highly flexible platform.
It supports a direct Ethernet connection to a PC without the need for a specialized Ethernet crossover cable.
Specifications
- Input supply voltage : 10-35V DC
- Nominal voltage : 12V|24V
- Consumption : 150mA @ 12V DC
- Connectivity : NMEA0183
- NMEA0183 inputs : 5x
- NMEA0183 outputs : 2x
- Serial port compatibility : RS422|RS232|RS485|NMEA 0183
- Baud rate : 4800 to 38400 bps
- Connector type : Ethernet (RJ45)
- Type approved : Yes

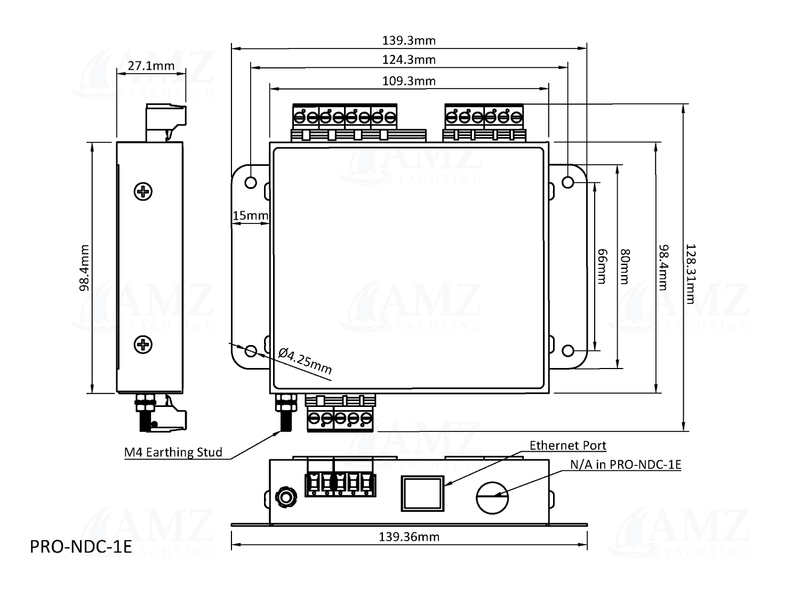

- Dimensions : 139mm(L)x98mm(W)x26mm(H)
- Product weight : 360g
Related products

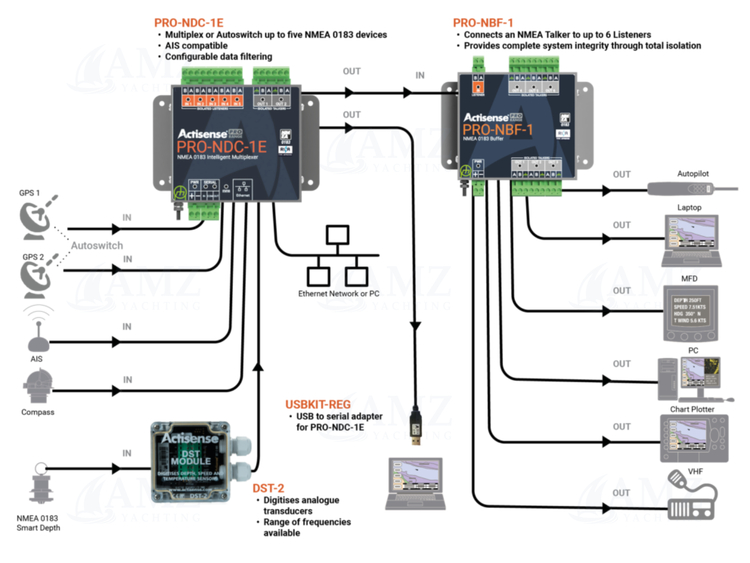

The five NMEA 0183 inputs can be routed
to either of the two NMEA 0183 outputs,
providing a highly customisable network. A
bi-directional serial port and an Ethernet port
allow for simple configuration and diagnostics

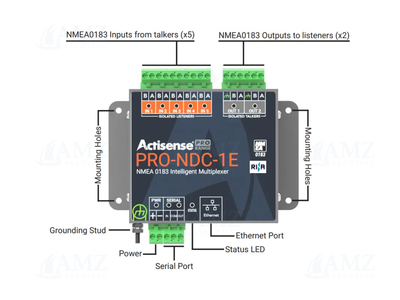

- Ethernet port – for configuration, diagnostics and sharing NMEA 0183 data
- 6 OPTO-Isolated NMEA 0183 inputs (including the serial port)
- 3 ISO-Drive NMEA 0183 outputs (including serial port)
- Advanced Data Filtering/Routing
- Configurable Input and output baud rates
- Autoswitch mode available to offer system redundancy
- Serial port – for configuration, diagnostics or as an additional NMEA 0183 input/output
- Free firmware updates make the device future-proof
- Power LED to indicate operational state
- Rx LED to indicate data on inputs
- Status LED (bi-colour) to indicate output Data Overload or a range of other states
- DIN rail or Panel mountable
- Pluggable screw terminal connectors for quick and easy installation
