Actisense
NMEA 0183 Multiplexer
SKU: NDC-4
Out of stock
Add to Cart
Years
Warranty
Official
Distributor
Description

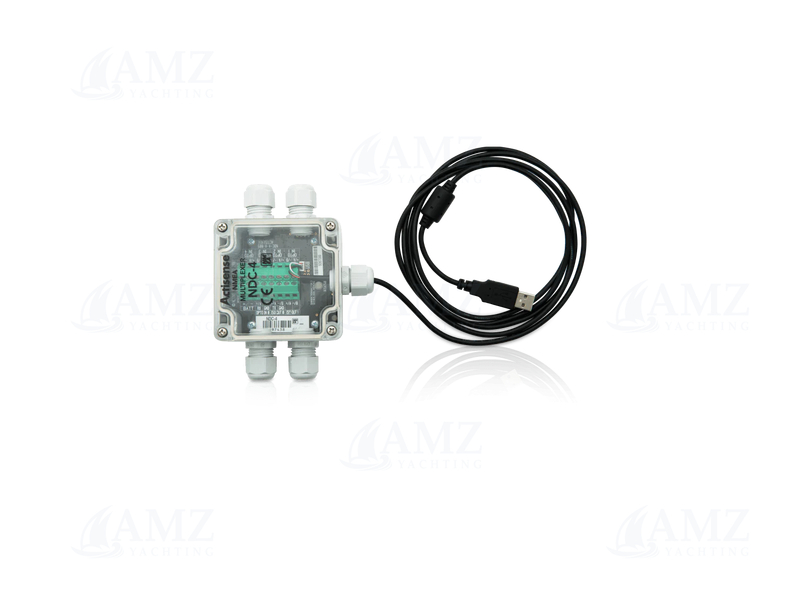

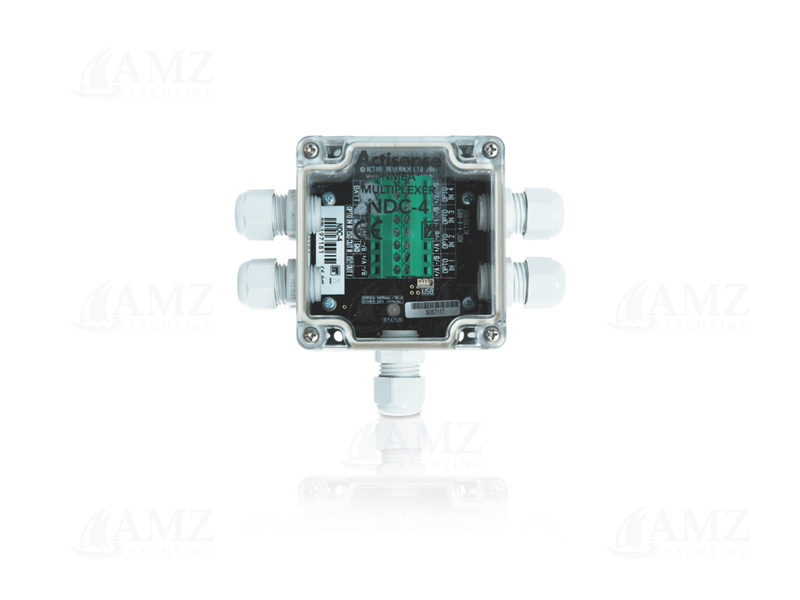

The Actisense NDC-4 allows up to five NMEA 0183 sources to be multiplexed into a single stream.
It provides complete access to all NMEA 0183 data sources, configurable filters to remove unwanted data using NDC Control Centre, as well as enabling an on-board PC to read and add the combined data stream.
Unit not in production.
Replacement unit: PRO-NDC-1E
Specifications
- Input supply voltage : 8-35 V DC
- Nominal voltage : 12V|24V
- Consumption : 40 mA max @ 12V DC
- Connectivity : NMEA0183
- NMEA0183 inputs : 5x
- NMEA0183 outputs : 2x
- Serial port compatibility : RS422|RS232|RS485|NMEA 0183
- Baud rate : 4800 to 115200 bps
- Dimensions : 132x108x55mm
- Product weight : 190g
