WeatherDeck Toggle Switch DPDT WeatherDeck Toggle Switch DPDT WeatherDeck Toggle Switch DPDT
Blue Sea Systems

Blue Sea Systems

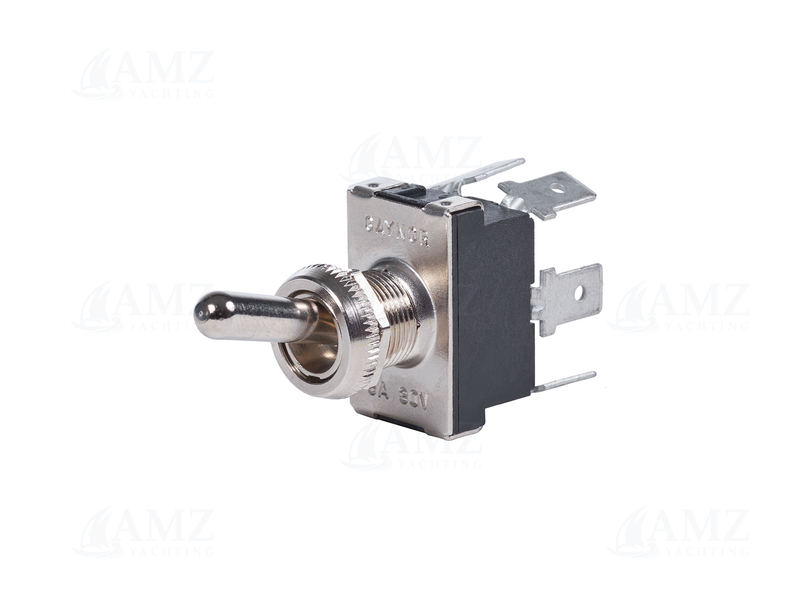

WeatherDeck Toggle Switch DPDT

SKU: 4155
Available
Add to Cart

Description

This WeatherDeck toggle switch has a Double Pole and Double Throw (DPDT).


Features:

  • Specially manufactured by Carling Technologies for use in Blue Sea Systems' WeatherDeck Panels
  • When mounted with a WeatherDeck Toggle Switch Boot Rated IP67-temporary immersion for 30 minutes
  • Nickel-plated brass and phenolic non-corrosive construction


Common applications: Combining navigation lights with anchor light with shared bulb.

Specifications

  • Input supply voltage : 30V DC
  • Nominal voltage : 12V|24V
  • Consumption : 5A

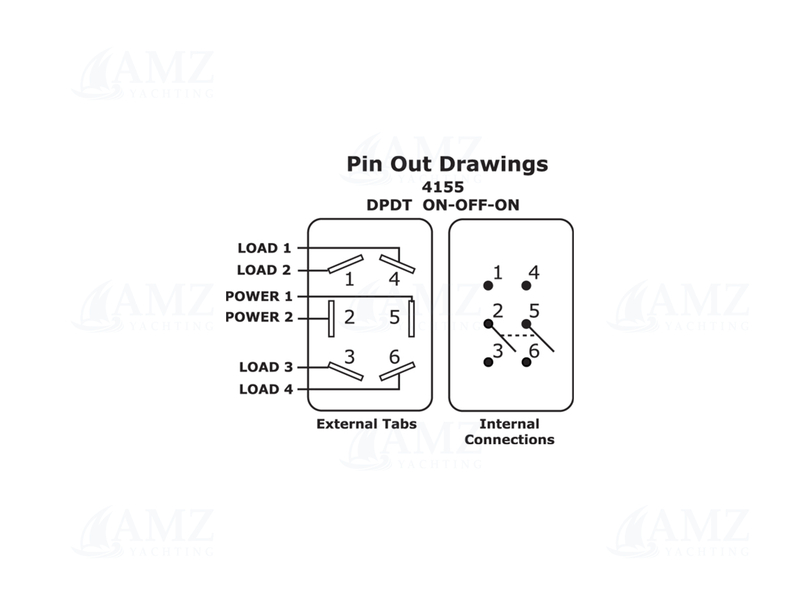

  • Action ( )=momentary : ON-OFF-ON
  • Circuit : Dual
  • Terminals : 6

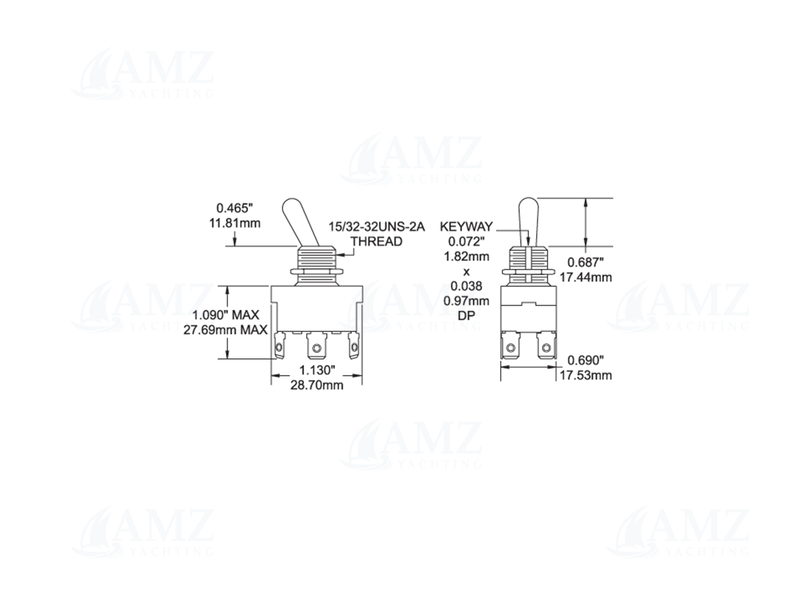

  • Dimensions : 28.70x27.69x17.53mm
  • Product weight : 0.05kg
