Veratron / VDO
VMH14 Gauge 52mm
SKU: B000109901
Available
Add to Cart
Years
Warranty
Official
Distributor
Description
The VMH 14 instrument is a new-generation 52 mm EasyLink satellite instrument.
One single device to support 8 different data types:
- Voltmeter
- Fuel Level
- Trim
- Coolant Temperature
- Oil Pressure
- Oil Temperature
- Transmission Oil Pressure
- Transmission Oil Temperature
Specifications
- Input supply voltage : 9-32 V
- Nominal voltage : 12V
- Consumption : <15 mA
- Connectivity : NFC|EasyLink
- Connector type : AMP superseal plug
- Diameter : 52mm
Documents

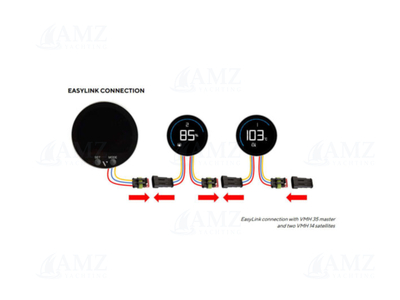

EasyLink connection
Combined with a Veratron VMH master device, the instrument is ideal for primary and secondary helm stations—either as a single unit or as part of a bank of units.
Package content:
1x VMH14 gauge
1x rubber sealing gasket
1x spinlock
1x safety manual
