Veratron / VDO

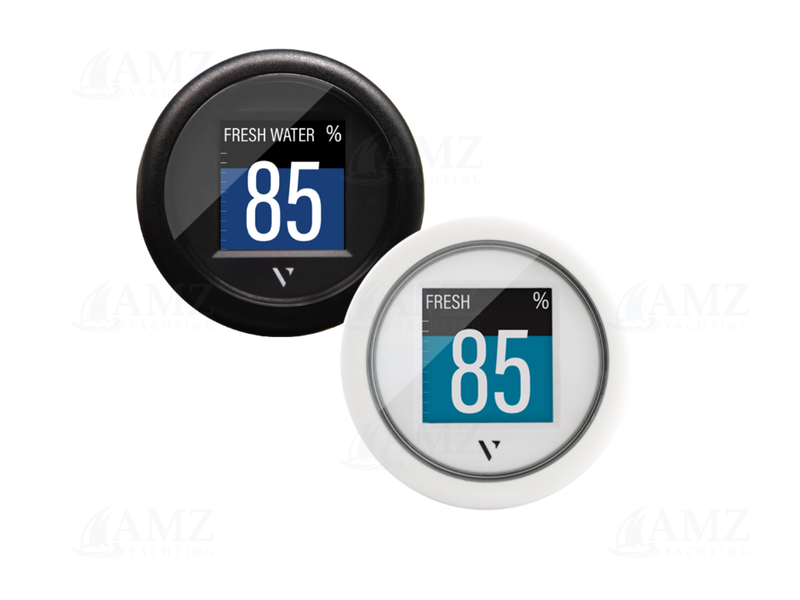

ViewLine Flex 52 NMEA2000 Gauge

SKU: -
Choose Color variant
Add to Cart
Years Warranty
Official Distributor

Description

The VL Flex 52 - NMEA 2000 supports input from analog sensors as well as NMEA 2000 and LIN 2.0.

Specifications

  • Input supply voltage : 8-32 VDC
  • Nominal voltage : 12V|24V
  • Consumption : 50mA
  • Liquid type : Fuel|Fresh water|Waste water
  • Connectivity : NMEA2000|NFC
  • NMEA2000 inputs : Yes
  • NMEA2000 outputs : Yes
  • LIN inputs : 1x
  • Data transfer/conversion : Analogue to NMEA2000
  • Analogue input type : Resistive (Ω)|Frequency (Hz)|LIN Bus
  • Resistive signal inputs (Ω) : 1x
  • Frequency signal inputs (Hz) : 1x
  • Signal resistance range : 0-180Ω|3-180Ω|10-184Ω|0-90Ω|90-4Ω|240-33Ω|240-33.5Ω|287.4-22.7Ω|322.8-18.6Ω|0-400Ω|2k Ω
  • Temperature range : 40-120°C/105-250°F|50-150°C/120-300°F|+50°C/+120°F|120°C/250°F|150°C/300°F|250°F/120°C|900°C/1650°F|100-900°C
  • Angle range : -40°/+40°|-45°/+45°
  • RPM range : 3000rpm|4000rpm|5000rpm|6000rpm|7000rpm|8000rpm
  • Pressure range : 2BAR/30PSI|5BAR/80PSI|10BAR/150PSI|25BAR/350PSI|30BAR/435PSI|150PSI/10BAR|400PSI/25BAR
  • Connector type : Micro-C (NMEA2000)|Hirschmann 8pin
  • Color : White|Black
  • Diameter : 52mm

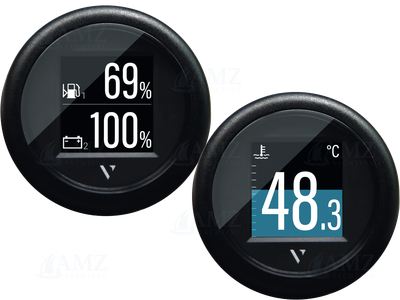

Single or dual layout presentation
Single or dual layout presentation

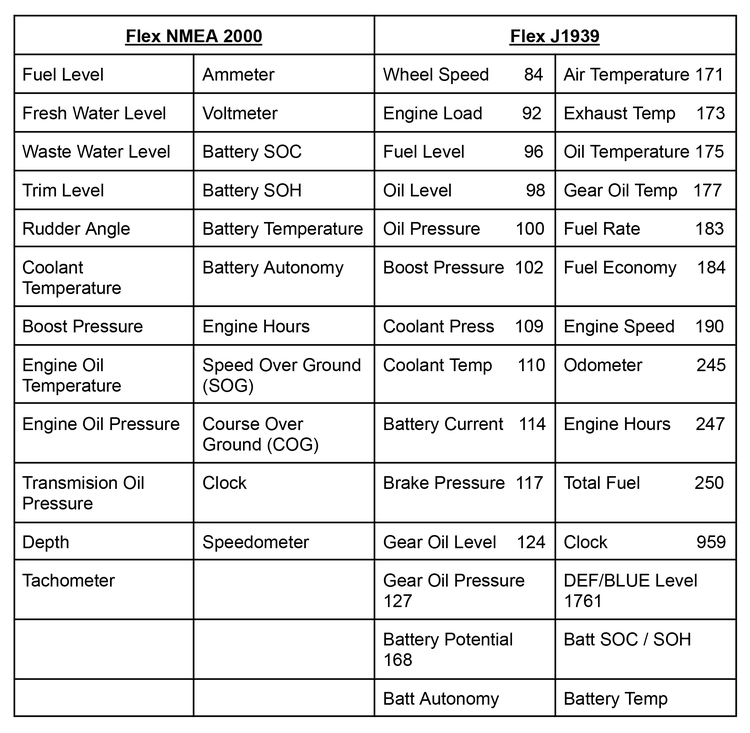

Fuel Level, Fresh Water Level, Waste Water Level, Trim Level, Rudder Angle, Coolant Temperature, Boost Pressure, Engine Oil Temperature, Engine Oil Pressure, Transmission Oil Pressure, Depth, Tachometer, Speedometer, Ammeter, Voltmeter, Battery SOC, Battery SOH, Battery Temperature, Battery Autonomy, Engine Hours, SOG, COG, Clock
banner

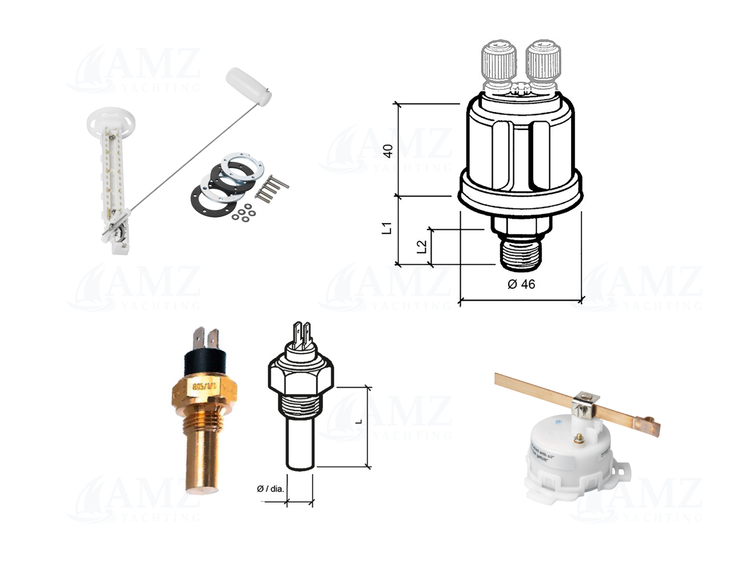

Analog connectivity


The supported analog inputs allow you to directly read from your engine sensors.



Frequency input:

Engine RPM sensors and Speed sensors


Resistive input:

Tank level, Temperature, Pressure, Rudder and Trim sensors

Digital network connectivity


The CAN interface expands this possibility by allowing the device to read from the digital network.



Lin connectivity:

Intelligent battery sensor


Can port:

NMEA 2000 or SAE J1939


NFC interface:

Contactless device configuration

banner
banner

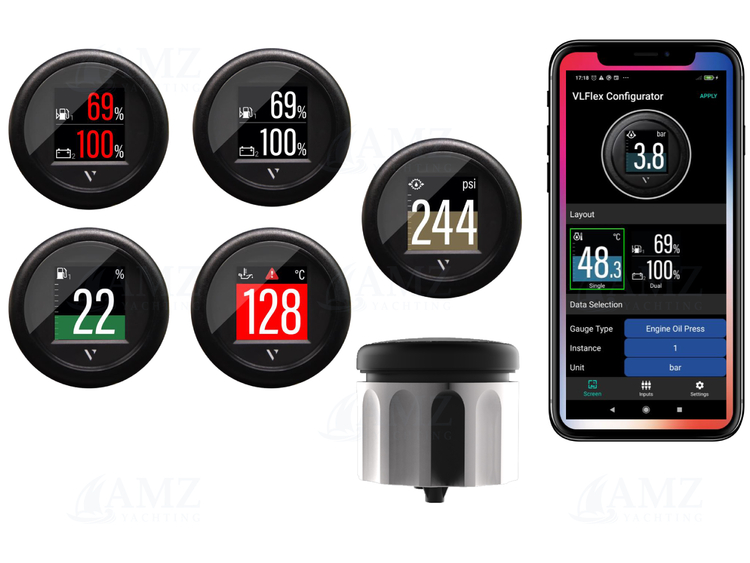

Contactless configuration


  • Device configuration via smartphone companion app
  • Setup your device with the user-friendly app
  • "Tap" the smartphone onto the instrument lens to configure it instantly

Package content:

1x VL Flex 52 – NMEA 2000

1x 52 mm spinlock nut

1x wiring harness

1x safety instructions

banner
