Blue Sea Systems
Terminal Block 20A
SKU: 2408
Available
Add to Cart
Description
The Blue Sea terminal block has 20A continuous rating which is the maximum current a switch is designed to conduct for an indefinite period.
Features:
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
Specifications
- Input supply voltage : 300V AC/DC
- Permanent current : 20A
- Circuit : 8
- Threads : M3.5
- Terminals : 16
- Material : Stainless steel|Nickel-Plated Brass

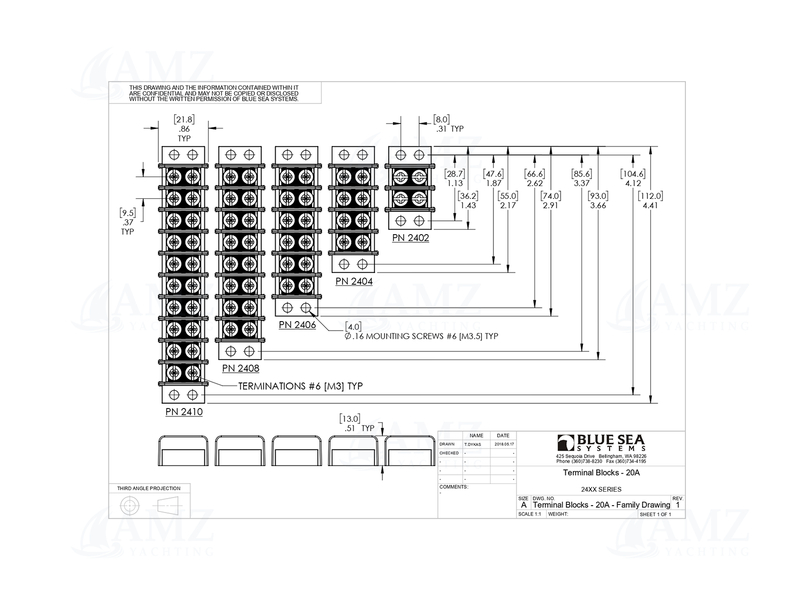

- Dimensions : 92.96mm
- Product weight : 0.05kg
