Description

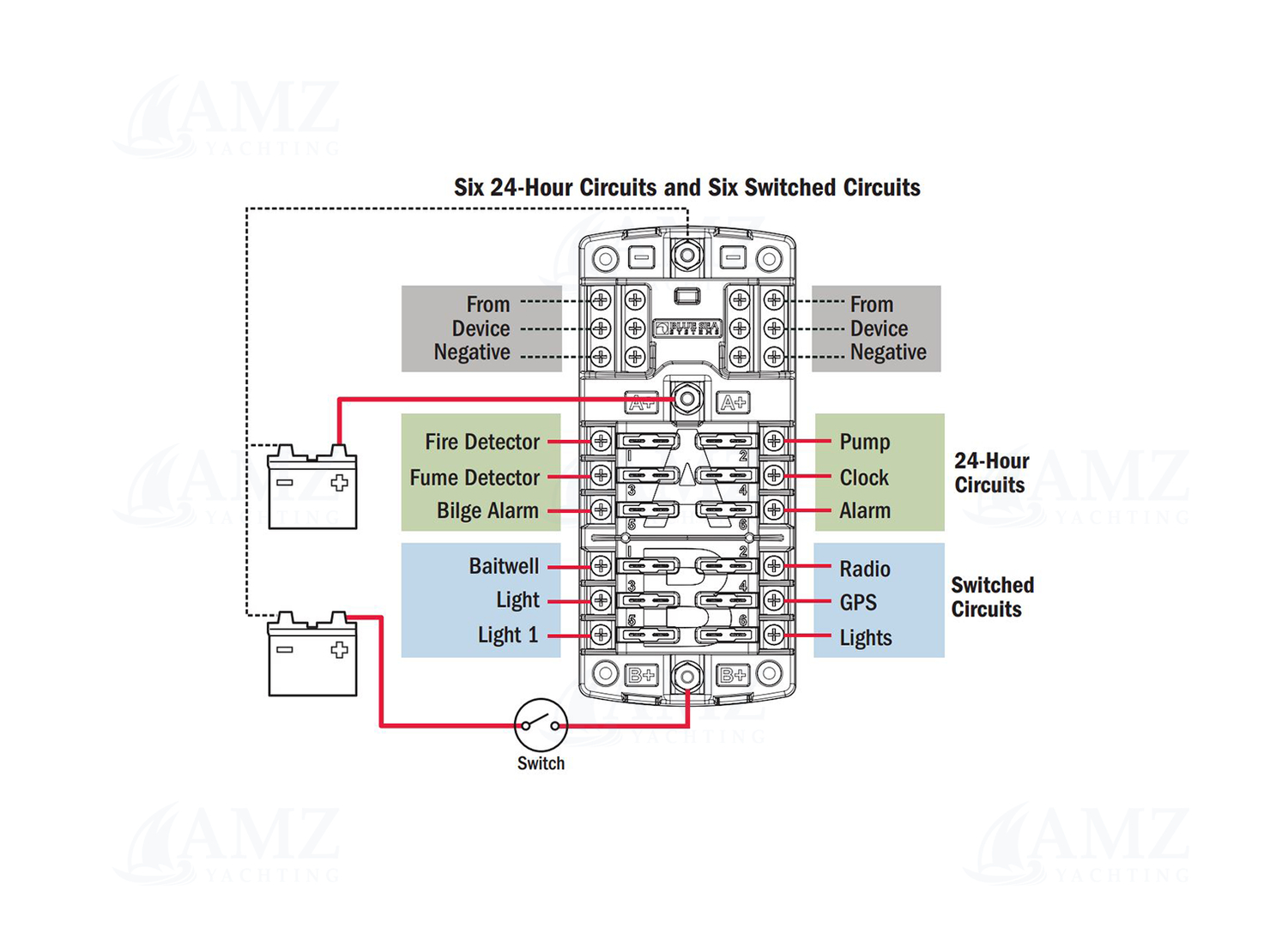

Split Bus Fuse Block with ground for use when a mix of switched and 24-hour circuits are desired in the same block.
Features:
- Provides two isolated groups of six ATO®/ATC® circuits
- For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
- Screw terminals for securing wires accept ring terminals
- One-piece stainless flange nuts ensure safe and secure connections
- Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
- Easy to open, push button latch for easy access to fuses
- Tin-plated copper buses and fuse clips
Specifications
- Input supply voltage : 32V DC
- Nominal voltage : 12V|24V
- Circuit : 12
- Material : Tin-plated copper|Reinforced polycarbonate

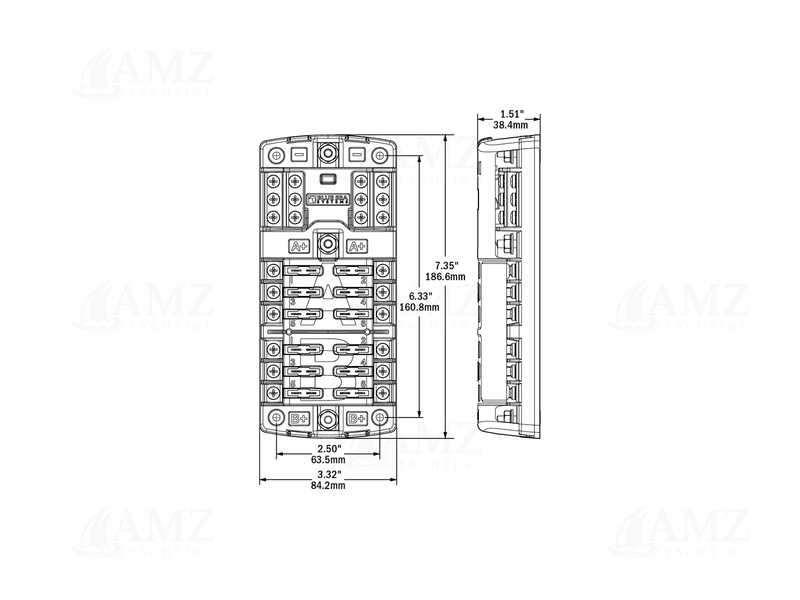

- Dimensions : 160.8x84.2x38.4mm
- Product weight : 0.34kg
