Blue Sea Systems

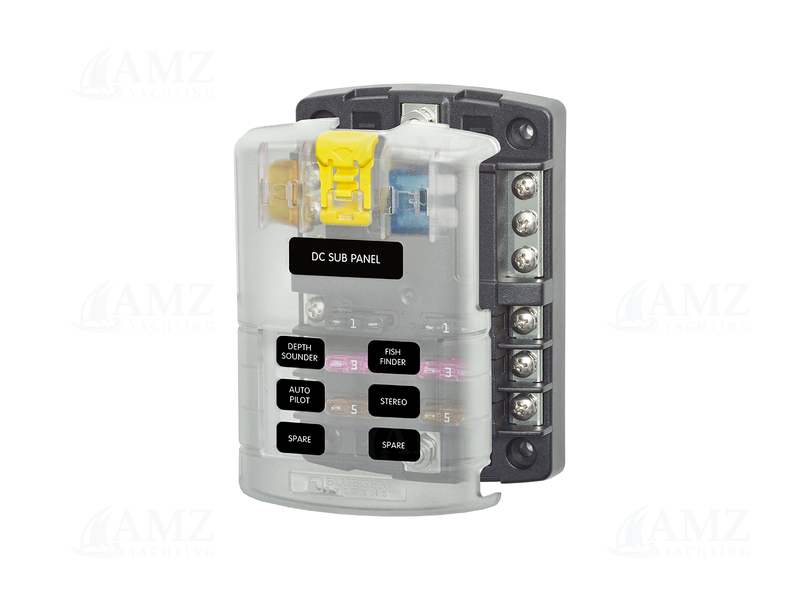

ST Blade Fuse Block with Negative Bus & Cover

SKU: 5025
Available
Add to Cart

Description

Consolidates branch circuits and in-line fuses.


Features:

  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover
  • Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
  • Fuse blocks with covers include 20 write-on circuit labels
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals

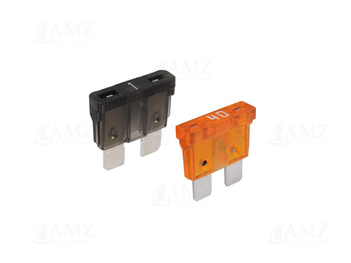

  • Accepts ATO® and ATC® fast acting blade fuses

Specifications

  • Input supply voltage : 32V DC
  • Nominal voltage : 12V|24V
  • Circuit : 6
  • Material : Reinforced polycarbonate

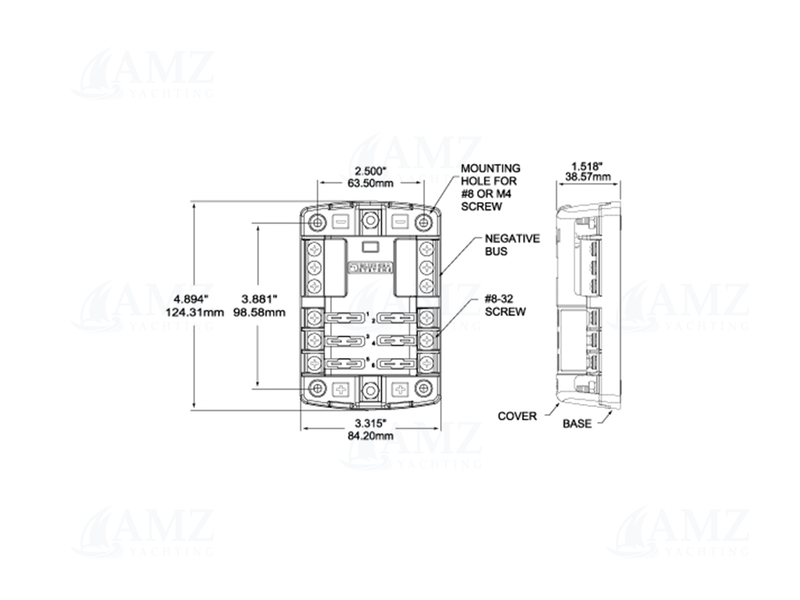

  • Dimensions : 124.31x84.20x38.57mm
  • Product weight : 0.25kg
64,72 €
Add to Cart
