ST Blade Fuse Block Independent Circuits ST Blade Fuse Block Independent Circuits ST Blade Fuse Block Independent Circuits
Blue Sea Systems

Blue Sea Systems

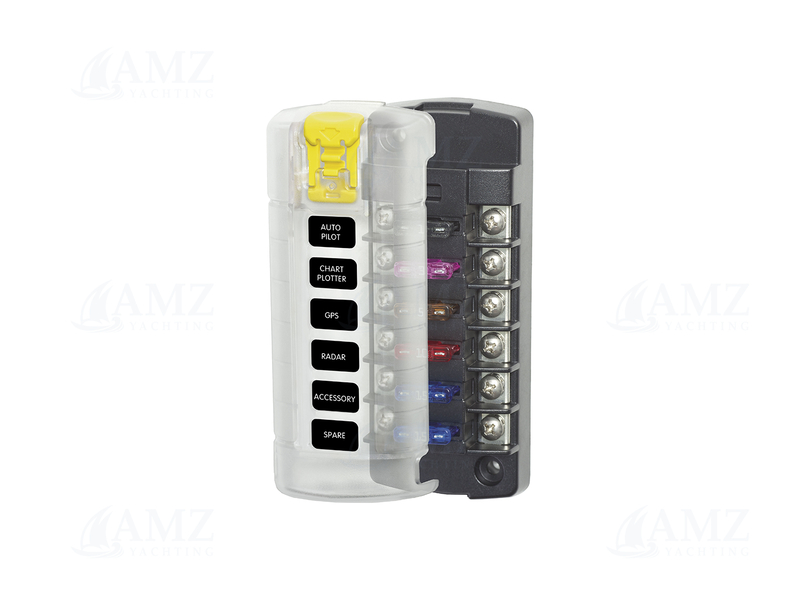

ST Blade Fuse Block Independent Circuits

SKU: 5035
Available
Add to Cart

Description

Consolidates branch circuits and eliminates in-line fuses.


Features:

  • Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system
  • Clear insulating cover with label recesses accepts Small Format Labels
  • Spare fuse holder in cover
  • Accepts ring or snap fork type terminals

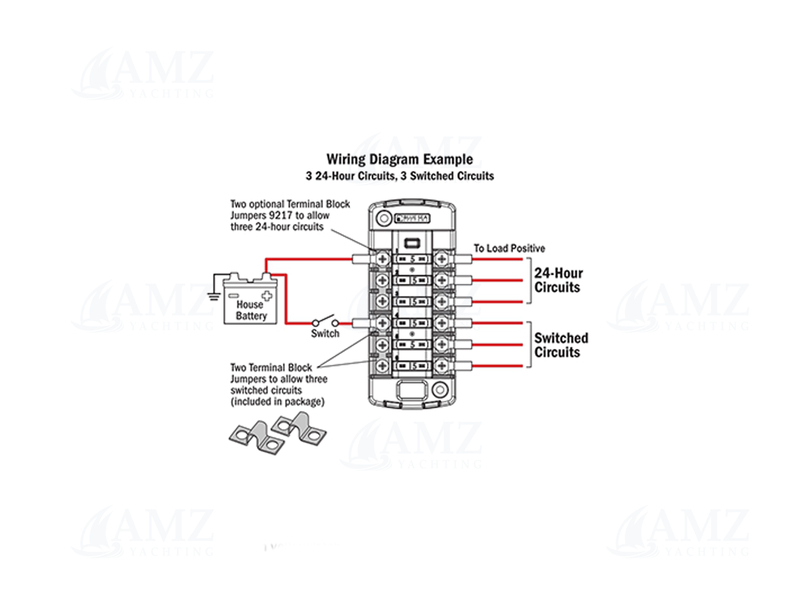

  • Includes two terminal block jumpers

Specifications

  • Input supply voltage : 32V DC
  • Nominal voltage : 12V|24V
  • Circuit : 6

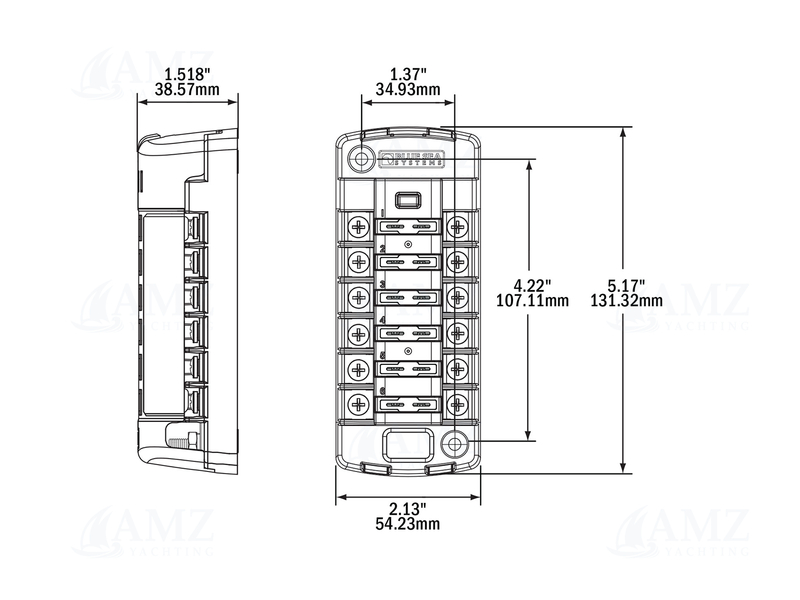

  • Dimensions : 131.32x54.23x38.57mm
  • Product weight : 0.16kg

Related products

Label DC Set 60 Black Small
Blue Sea Systems

Label DC Set 60 Black Small

12,89€

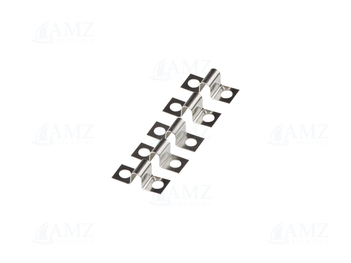

Terminal Block Jumpers
