Digital Yacht

SeaTalk1 to NMEA0183 Converter (ISO)

SKU: ZDIGSTN
Available
Add to Cart
Years Warranty

Description

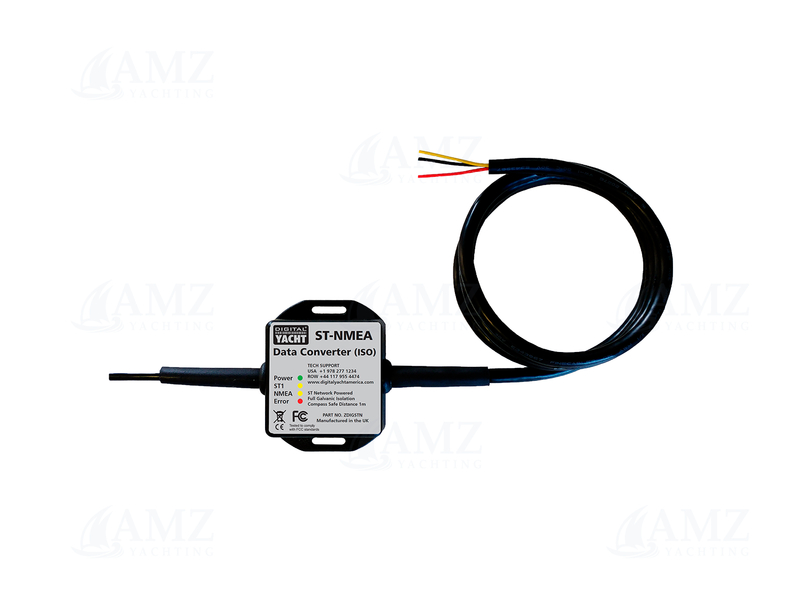

Digital Yacht’s SeaTalk to NMEA 0183 (ISO) converter is a small but powerful interface that provides bi-directional conversion between a SeaTalk network and an NMEA0183 network or device.

The ST-NMEA converter takes its power from the SeaTalk network.

It features a full, multi-transistor SeaTalk 1 interface, an opto-isolated NMEA0183 input and differential NMEA0183 output.

Therefore, key navigational data between the SeaTalk and NMEA0183 networks can be shared reliably.

Specifications

  • Nominal voltage : 12V
  • Connectivity : NMEA0183|SeaTalk1
  • NMEA0183 inputs : 1x
  • NMEA0183 outputs : 1x
  • Baud rate : 4800 to 38400 bps
  • Data transfer/conversion : SeaTalk1 to NMEA0183

Package content:

1x Converter

1x Seatalk1 cable 0.75m

1x NMEA0183 cable 0.75m
