Description

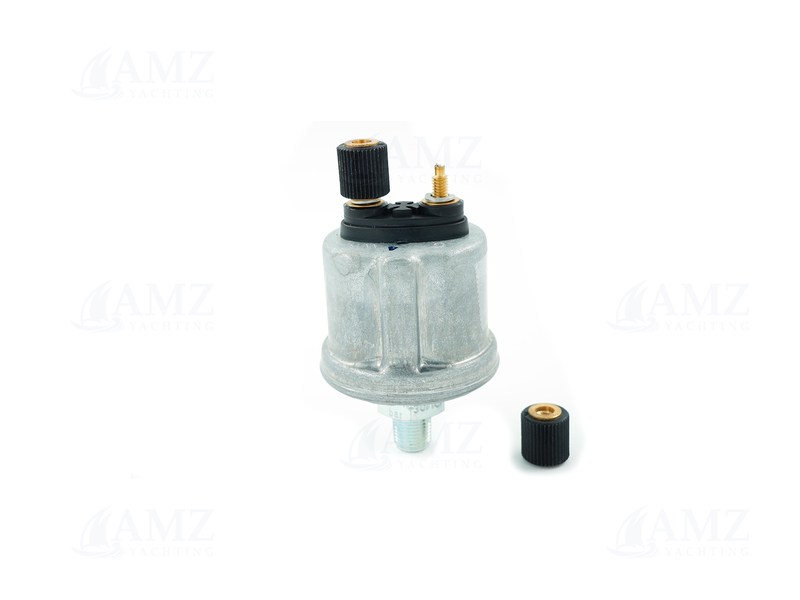

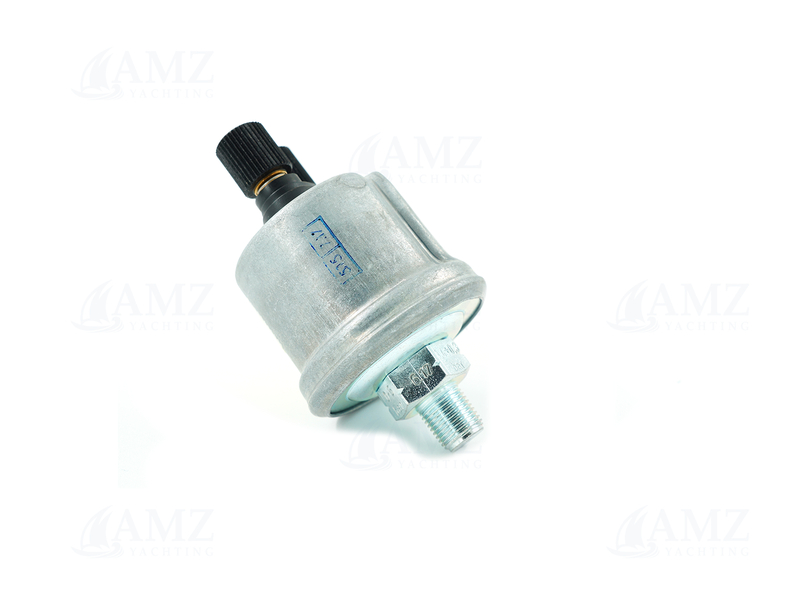

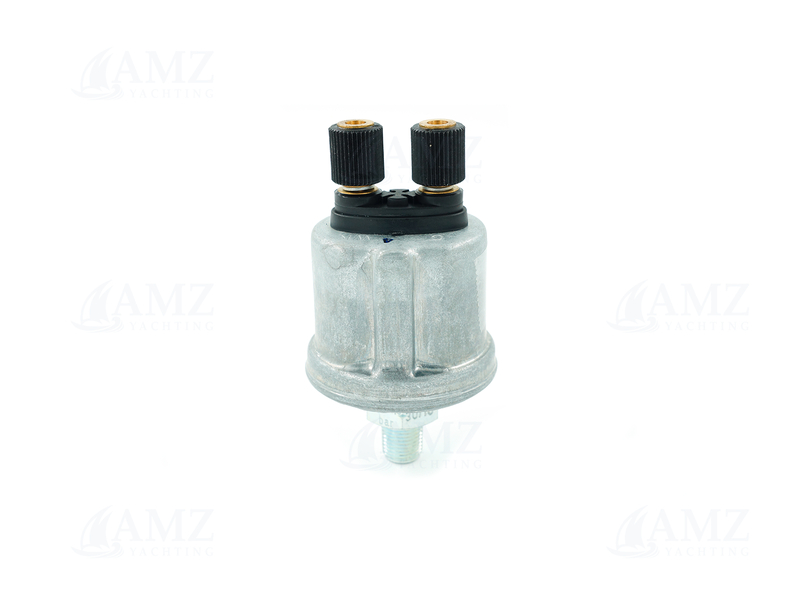

Pressure sensor 5bar/80psi with common ground, warning contact and M10x1 thread.
Sensor not in production.
Specifications
- Nominal voltage : 12V|24V
- Analogue output type : Resistive (Ω)
- Signal resistance range : 10-184Ω
- Pressure range : 5BAR/80PSI
- Return signal : Common ground
- Threads : M10x1
- Connector type : M4 Plastic knurled nut (2x)
