Description

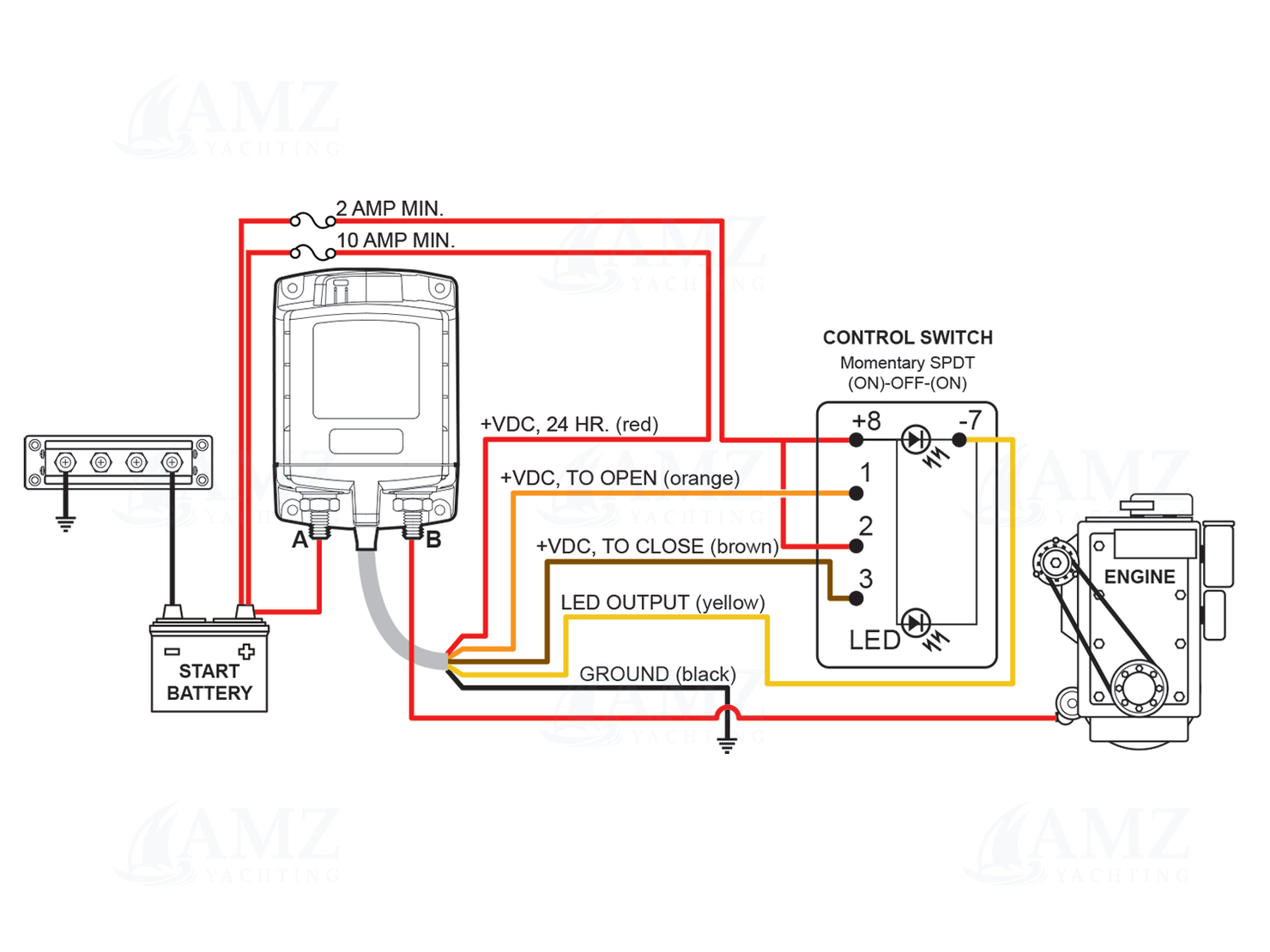

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations.
Features:
- Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state - requires optional LED
- 3∕ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7∕ 8" (22 mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
Specifications:
Manual control: Yes
Coil function: Bi-Stable
Specifications
- Input supply voltage : 9-16V DC
- Nominal voltage : 12V
- Consumption : 7A @ 12V DC
- Permanent current : 500A
- Maximum current (peak) : 1450A
- Action ( )=momentary : (ON)-OFF-(ON)
- Threads : M10 bolt
- Dimensions : 138.94x95.25x51.56mm
- Product weight : 0.93kg
