Blue Sea Systems

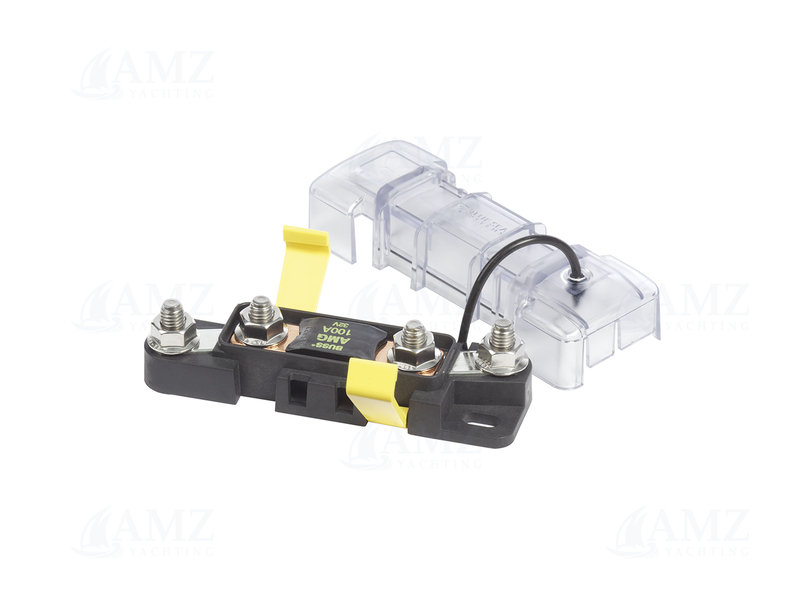

MEGA/AMG Safety Fuse Block

SKU: 7721
Available
Add to Cart

Description

AMG/MEGA Fuse block for 100A to 300A fuses.


Features:

  • Ignition protected for installation aboard gasoline or diesel powered boats
  • Sealed cover protects fuses from the harsh marine environment
  • Insulating cover satisfies ABYC/USCG insulation requirements
  • Cover breakouts allow wire access in any direction
  • 300A maximum with 4/0 cable
  • Accepts Blue Sea Systems Square Format standard or custom label

Specifications

  • Input supply voltage : 32V DC
  • Nominal voltage : 12V|24V

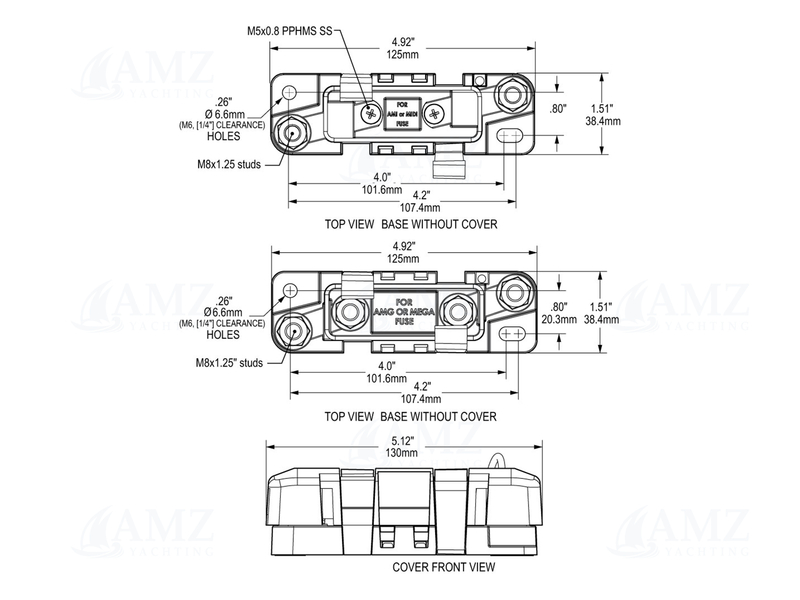

  • Dimensions : 125x38.4mm
  • Product weight : 0.07kg
