Veratron / VDO

LinkUp Pyrometer Gateway

SKU: B00042301
Available
Add to Cart
Years Warranty
Official Distributor

Description

The Link Up Pyrometer gateway delivers an easy method to provide the exhaust temperature to NMEA 2000.

The pyrometer sensor serves to monitor accurately the temperature in the elbow flange of the exhaust pipe and indicates eventual thermal overload of the engine.

Specifications

  • Nominal voltage : 12V
  • Consumption : <100 mA
  • Connectivity : NMEA2000|NFC
  • NMEA2000 outputs : Yes
  • Analogue input type : Resistive (Ω)
  • Temperature range : 100-900°C
  • Connector type : Micro-C (NMEA2000)|AMP superseal plug

Package content:

1x LinkUp pyrometer

1x 6m extension cable high resistance

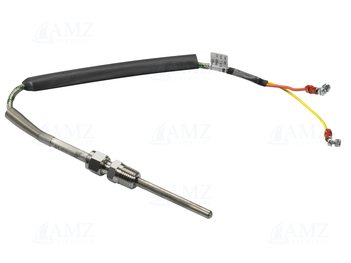

1x Pyrometer thermocouple

338,15 €
Add to Cart
