Veratron / VDO

LinkUp IBS - 12V/249Ah

SKU: B00042501

250,50 €

Incl. VAT

Available

Add to Cart

Years Warranty

Official Distributor

The Intelligent Battery Monitoring System, informs you about the current energy status, allowing you to plan your energy supply.

It is necessary to know its State of Charge, State of Health and any changes to the battery.

Delivered data:

-Battery Voltage

-Battery Current

-Battery Temperature

-State of Charge (SOC)

-State of Health (SOH)

-Autonomy

Supported battery types:

-Gel

-AGM

-Flooded (Lead)

Input supply voltage : 6-16.5 V DC
Nominal voltage : 12V
Consumption : ≤ 15 mA
Connectivity : NMEA2000|NFC|LIN Bus
NMEA2000 outputs : Yes
Analogue input type : IBS
Capacity : 249Ah - 12V IBS
Permanent current : +/-155A
Maximum current (peak) : +/- 1500A - 12V IBS
Threads : M8 GND bolt
Connector type : Micro-C (NMEA2000)

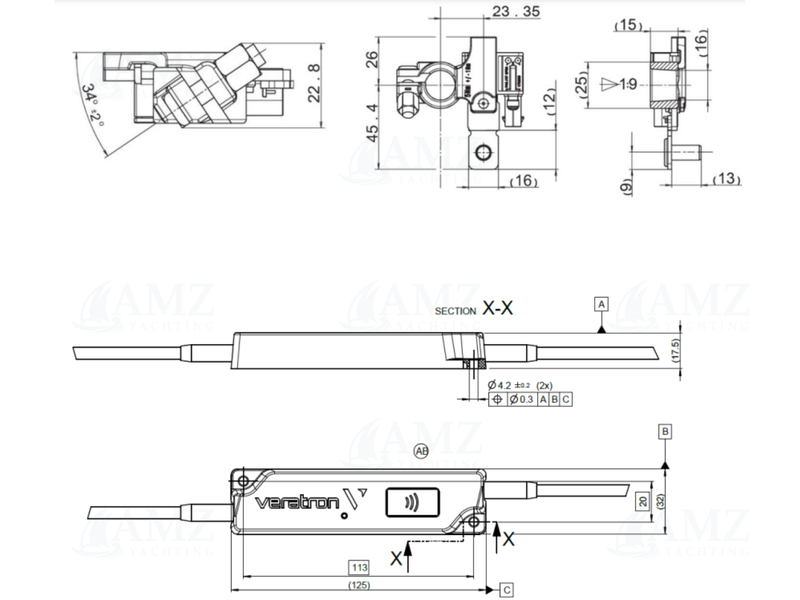

Connection & Diagram

The LinkUp interfaces the IBS sensor with the NMEA 2000® network to make all the information available for any display.

Wireless configurable, the Link Up gateway is also the access point for the configuration of the battery parameters.

The IBS after the simple electrical and mechanical integration, the sensor accurately measures the battery voltage, current and temperature parameters and internally calculates the State Of Charge, State Of Health and Time.
