Load Pin Wired

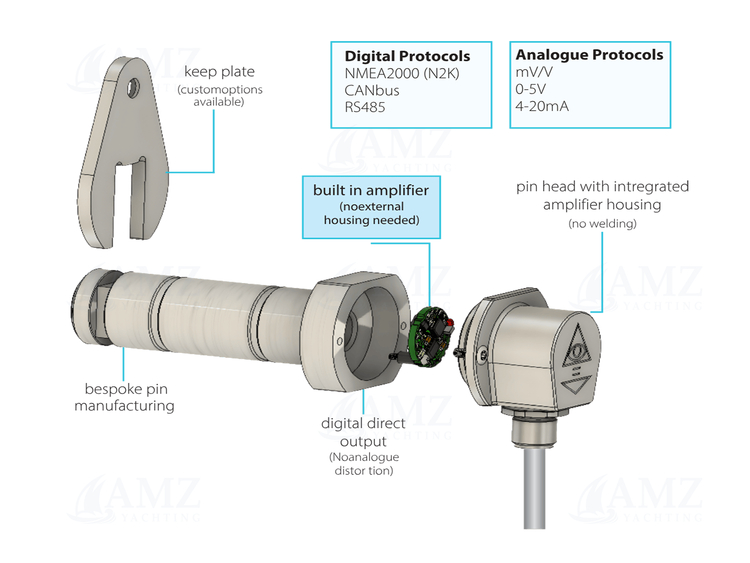

Load Pins from Cyclops Marine replace existing pins to measure loads applied to standing rigging, such as forestays and shrouds. The pins are supplied factory calibrated, with ‘digital direct’ load output from the pin connector and no external housing to worry about, as the amplifier is incorporated into the pin.

Cyclops load pins are entirely custom designed around customer requirements.

Features:

• All parts manufactured in the UK.
• Simple installation with standard tools, no need for in-situ recalibration.
• 17-4/PH Stainless Steel as standard (other materials available).
• Designed to operate in harshest marine environments.
• Temperature compensated within -10º to +40ºC range.
• Rated IP68.
• Digital output from pin connector reduces complexity of installation and risk of damage.
• Various types of anti-rotation methods available, including keep plates and tear drop fastener tabs to maintain alignment with load.
• High accuracy calibration, typically ±1% of MWL.
