Raymarine

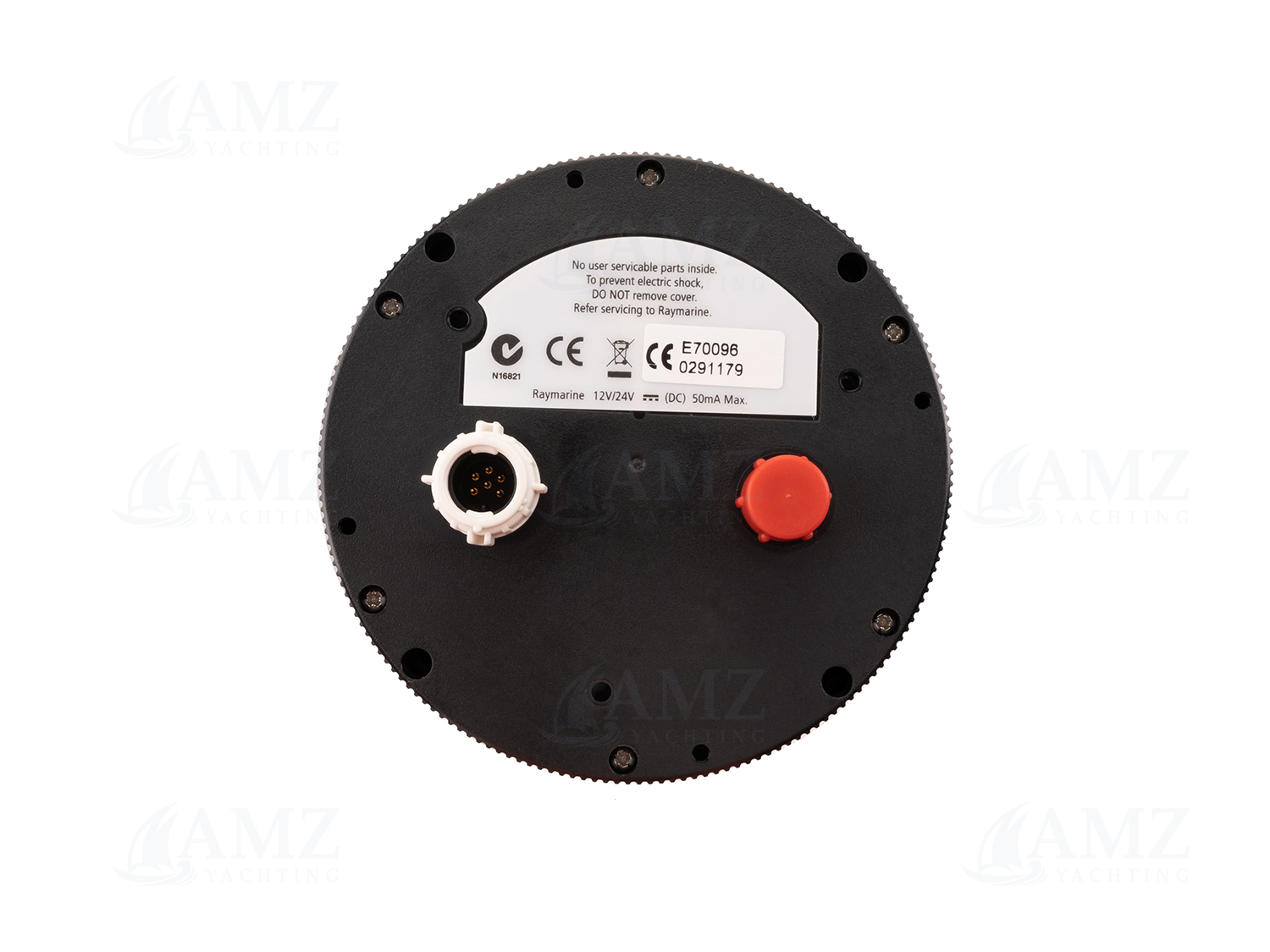

EV-1 Evolution Autopilot Sensor Core
SKU: E70096
Available
Add to Cart
Years
Warranty
Description
The EV-1 autopilot sensor core is the primary heading sensor and course computer, incorporating an attitude 9-axis sensor.
This sensor replaces the fluxgate compass typical in existing autopilot systems.
The EV-1 sensor core is included with select Evolution autopilot bundle kits.
The EV-1 can also be used independent of an autopilot to provide compass heading data to your chartplotter or radar.
Specifications
- Input supply voltage : 10.8-15.6V DC
- Nominal voltage : 12V
- Consumption : 30mA
- Connectivity : NMEA2000
- Connector type : SeaTalkng
- Dimensions : 140x95x35mm
- Product weight : 0.29kg
