Actisense
NMEA 0183 Multiplexer
SKU: PRO-MUX-2
Available
Add to Cart
Years
Warranty
Official
Distributor
Description

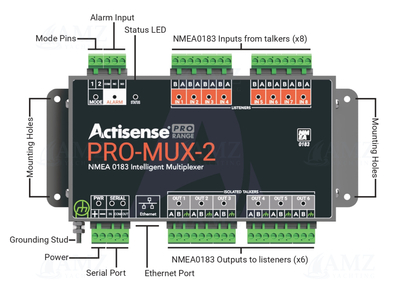

Eight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility, all in one product.
The PRO-MUX-2 also supports a direct Ethernet connection to a PC without the need for a specialised ethernet crossover cable.
Specifications
- Input supply voltage : 10-35 V DC
- Nominal voltage : 12V
- Consumption : 220mA @ 12 VDC
- Connectivity : NMEA0183
- NMEA0183 inputs : 8x
- NMEA0183 outputs : 6x
- Serial port compatibility : RS422|RS232|RS485|NMEA 0183
- Baud rate : 4800 to 38400 bps
- Connector type : Ethernet (RJ45)
- Type approved : Yes
- Dimensions : 210mm(L)x128mm(W)x27mm(H)
- Product weight : 540g
Related products
The eight NMEA 0183 inputs can be routed to any of the six NMEA 0183 outputs, providing a highly customisable network. A bi-directional serial port and an Ethernet port allow for simple configuration and diagnostics using Actisense software.
