NKE Marine Electronics

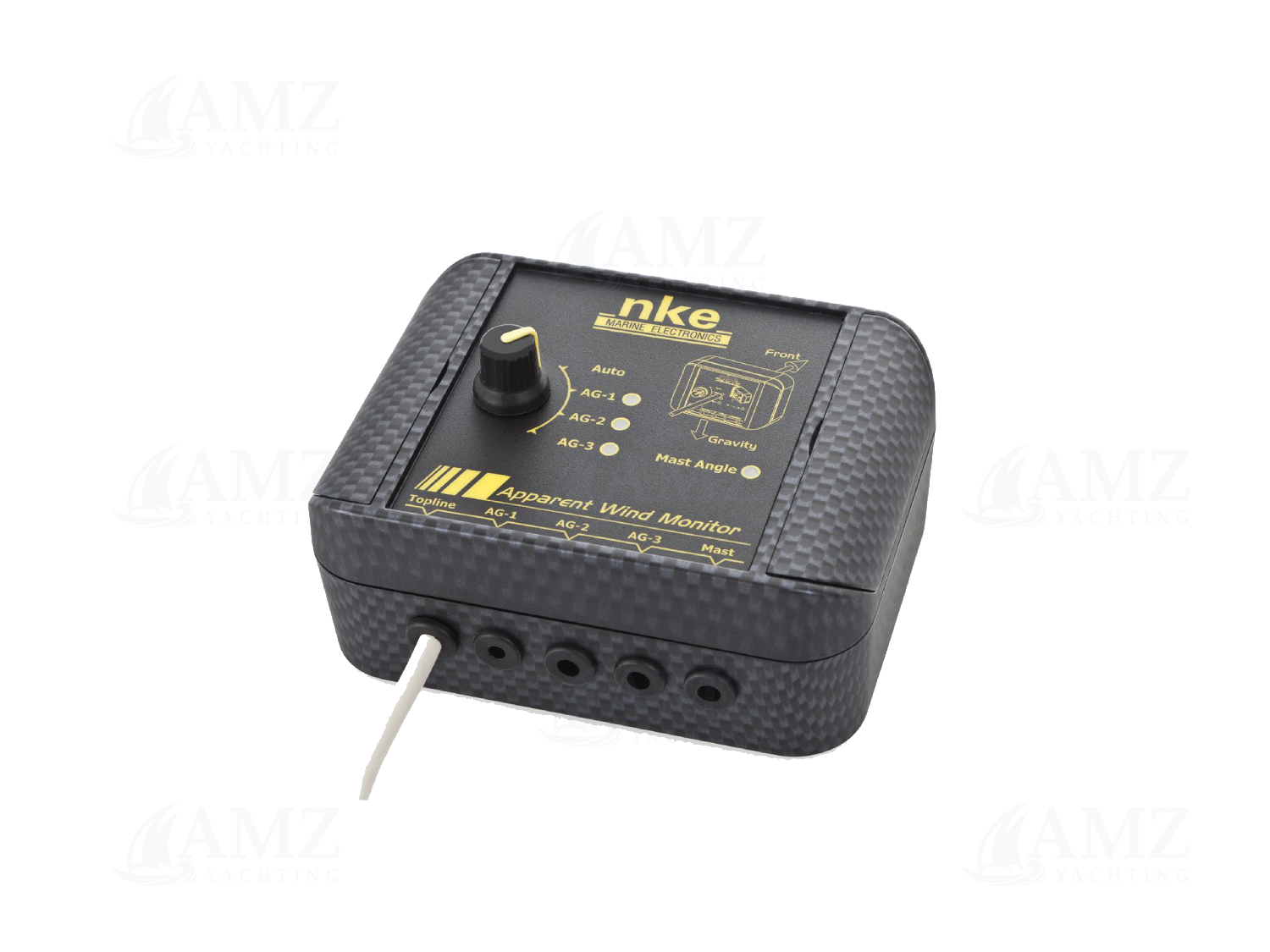

Apparent Wind Monitor Interface

SKU: PF000137
Upon Order (15-20Days)
Add to Cart
Years Warranty
Official Distributor

Description

The Apparent wind monitor features multiple functions:

-To isolate the main installation from the mast line in case of short circuit or overvoltage

-In these cases, to switch manually or automatically to a second or third wind sensor,

-To switch to compass mode (without losing control of the pilot) if the installation has only one wind vane sensor on board.


Old product SKU:

90-60-398

Specifications

  • Input supply voltage : 8-32 V DC
  • Nominal voltage : 12V|24V
  • Consumption : 100mA @ 12 VDC
  • Connectivity : NMEA0183|Topline (NKE Bus)
  • NMEA0183 outputs : 1x
  • Baud rate : 38400 bps
  • Topline (NKE Bus) : Yes
  • Transducer inputs : Wind
  • Wind transducer inputs : 3x
1.649,20 €
