NKE Marine Electronics

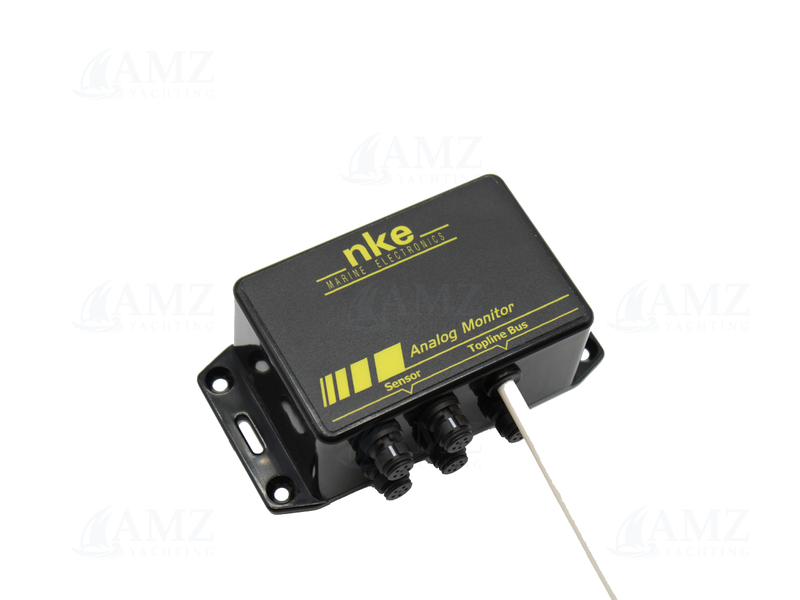

Analog Monitor Interface 4x
SKU: -
Choose Voltage variant
Add to Cart
Years
Warranty
Official
Distributor
Description
The Analog Monitor is an interface to connect 4x analog sensors to 0- 3,3 Volts to the Topline Bus.
It is factory set as a rotating mast Interface.
Display in analogue or digital form with up to 8 customizable channels.
Old product SKU:
0-5V: 90-60-558
0-10V: 90-60-571
Specifications
- Input supply voltage : 8-32 V DC
- Nominal voltage : 12V|24V
- Consumption : <20 mA
- Connectivity : NMEA0183|Topline (NKE Bus)
- NMEA0183 outputs : 1x
- Topline (NKE Bus) : Yes
- Analogue input type : Voltage (V)
- Voltage signal inputs (V) : 4x
- Transducer inputs : Analog voltage 4x
- Dimensions : 85mm(L)x56mm(W)x35mm(H)
- Product weight : 300g
942,40 €
