Linear Drive RV2 + VHM40 ST16 - 12V

Linear Drive RV2 + VHM40 ST16 - 12V

Linear Drive RV2 + VHM40 ST16 - 12V

Linear Drive RV2 + VHM40 ST16 - 12V

Lecomble & Schmitt

Lecomble & Schmitt

Linear Drive RV2 + VHM40 ST16 - 12V

SKU: 2203066

2.302,89 €

Incl. VAT

Available in 4 - 10 days

Add to Cart

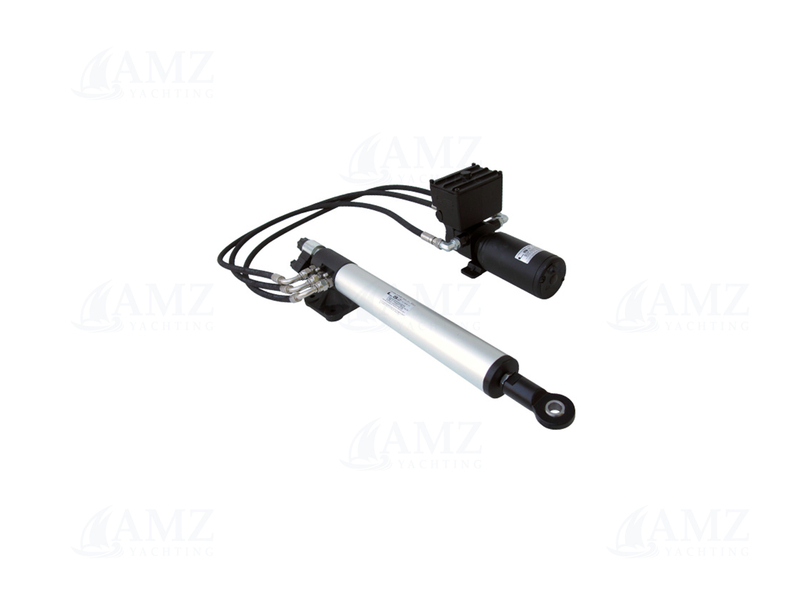

Single rod hydraulic linear assemblies for autopilot.

Features:

Directly fitted on the quadrant.
Possible floor, ceiling or bulkhead installation of the cylinder.
Separate reversible power pack with fixed flow for installation at your selected location.

Nominal voltage : 12V
Maximum force : 450kg
Operating distance : 240mm

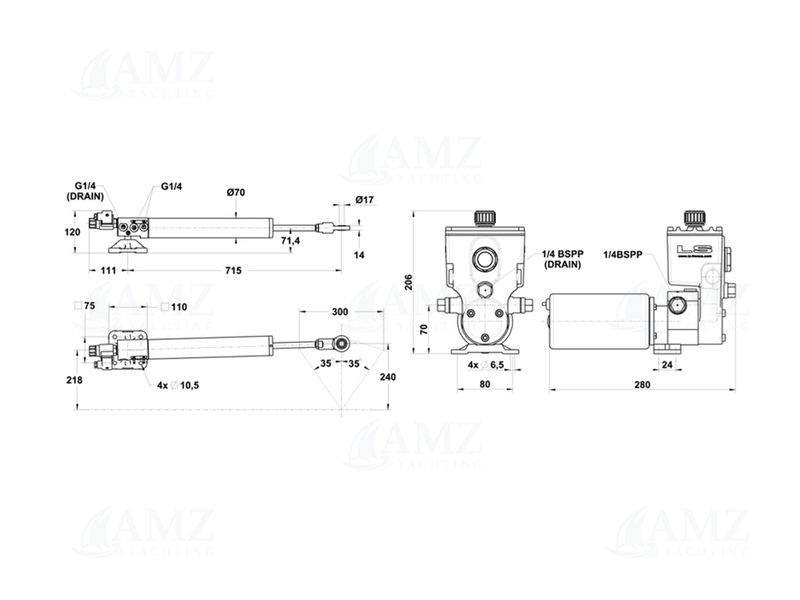

Dimensions : 563x120mm
Product weight : 3.5kg

LS linear drive manual

2.302,89 €

Add to Cart
