Jefa

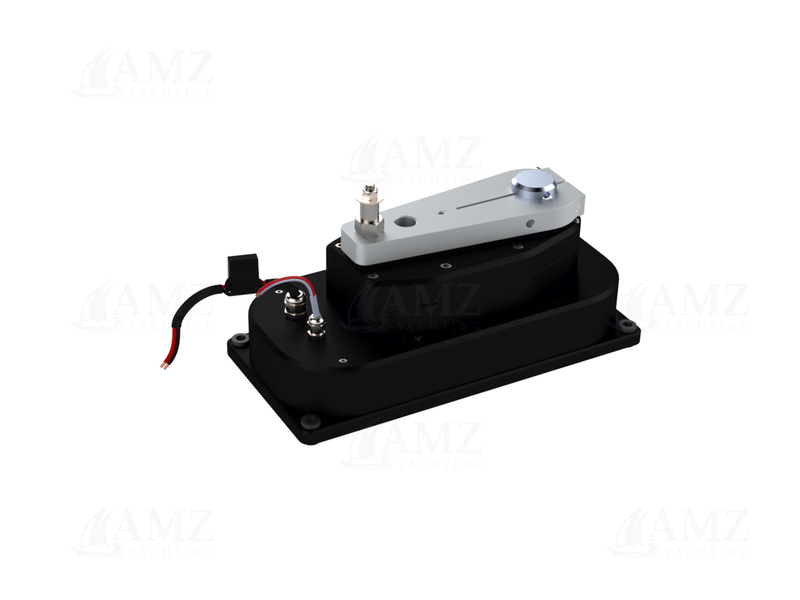

Autopilot Direct Drive Unit MK2
SKU: DU-DD1-12
Available
Add to Cart
Description
Jefa autopilot drives work together with all mayor autopilot electronics.
The drive can be used on boats from 30 to 45 foot l.o.a. (or up to 150 Kgm rudder torque) equipped with a mechanical steering system that can be back driven.

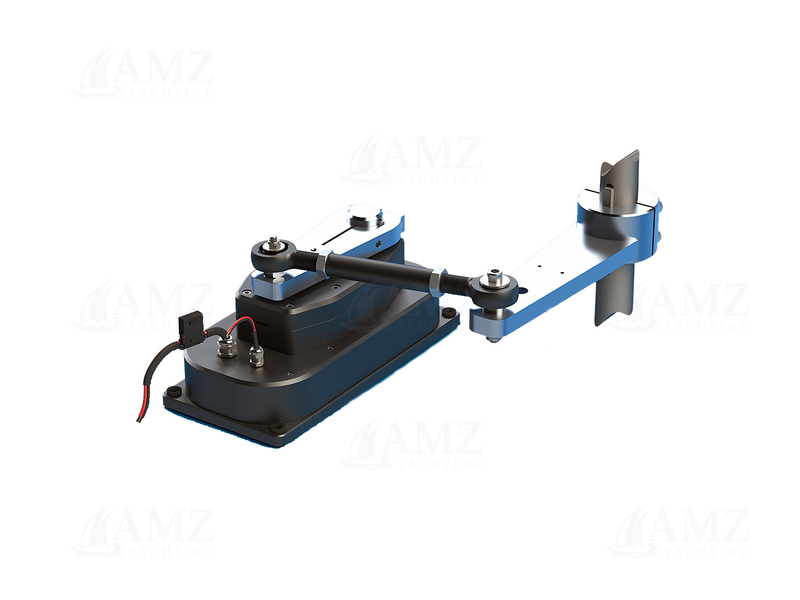

The direct drive drives the rudder via a draglink and the existing tiller arm or quadrant or via an independent tiller arm.
Autopilot is sold without draglink and tiller arm on the rudder.
Specifications
- Nominal voltage : 12V
Related products

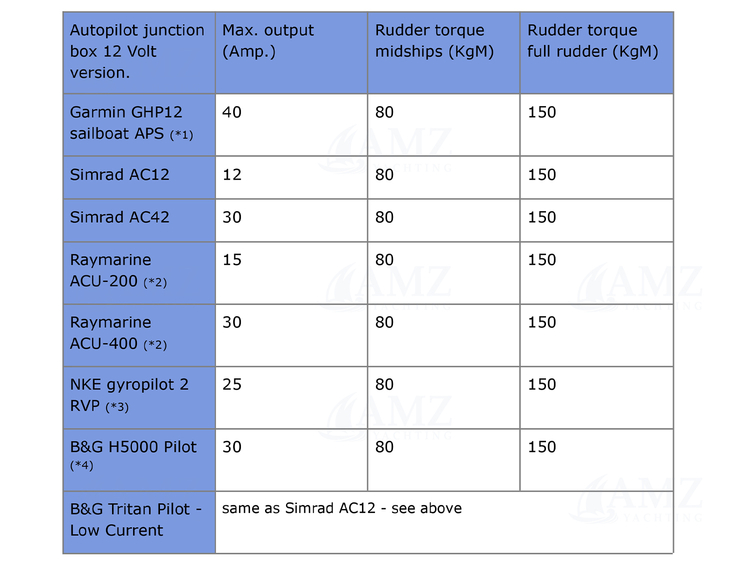

Maximum rudder torques at midships and full rudder that can be generated by the Jefa 150 KgM direct drive in combination with various autopilot junction boxes.

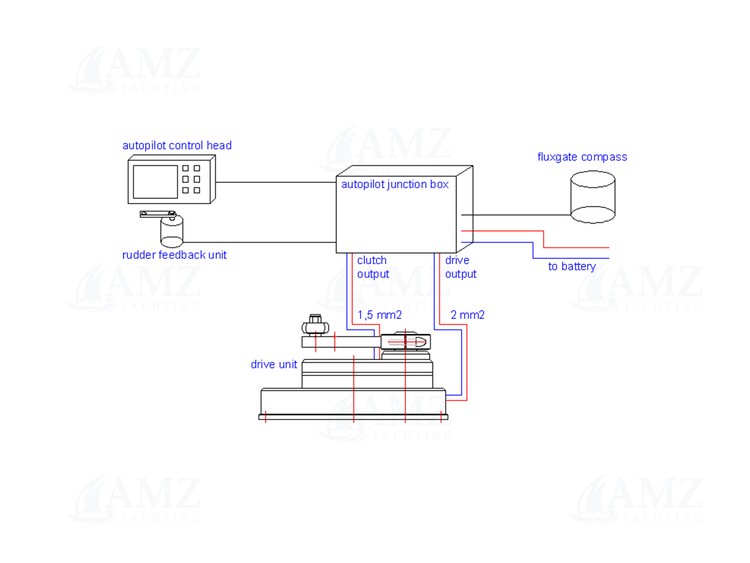

The connection of the Jefa autopilot drive to the autopilot junction box is quite simple.
The two 1.5 mm² red and black wires have to be connected to the plus and minus of the autopilot clutch line.
This will make sure that when the autopilot user engages the autopilot on the control screen, the clutch will engage and allow the autopilot motor to drive the rudder.
The two 2 mm² red and black wires have to be connected to the autopilot drive output connection.
Now the Jefa autopilot drive is integrated into the system.
3.004,52 €
