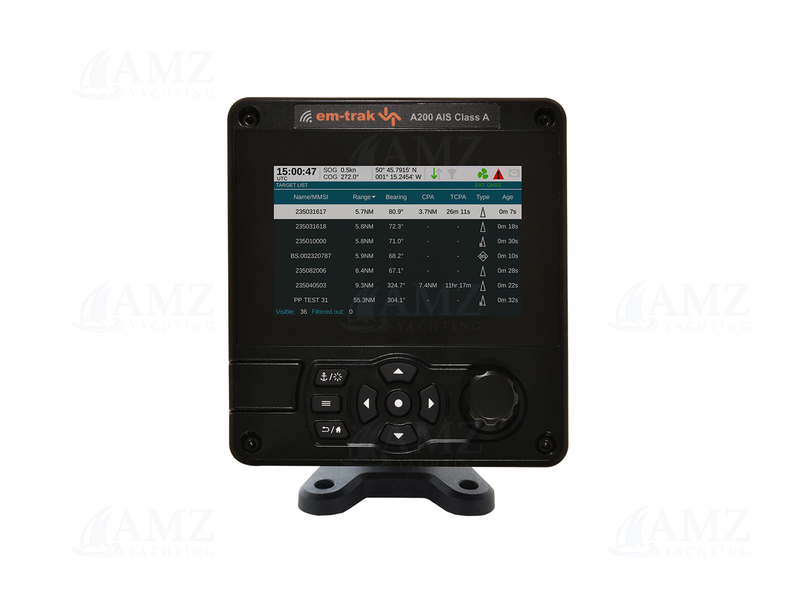

Em-trak A200 Series Class A Transceiver

SKU: 425-0012
Available in 1 - 3 days
Add to Cart
Years Warranty

Description

The A200 is a SOLAS and Inland Waterway certified AIS Class A transceiver, compliant with all national and international (IMO) commercial vessel regulations.


Features:

  • IMO SOLAS certified AIS Class A
  • EU Inland Waterway certified ruggedized and impervious to extreme environments – water (IPx6, IPx7), damp, shock, vibration and temperatures
  • High performance latest generation GPS
  • Suitable internal or permanent external installation
  • Robust ergonomic button and rotary-knob user interfaces with configurable multi-lingual menu options
  • Integrated high definition colour display with night mode
  • ENC chart (C-Map) with configurable AIS target overlay
  • Silent mode – AIS transmissions are stopped, all AIS messages continue to be received
  • Integrated WiFi
  • Pilot plug cable and junction box accessory options

Specifications

  • Input supply voltage : 9.6-31.2V DC
  • Nominal voltage : 12V|24V
  • Consumption : 520mA @ 12V DC
  • Power : 6.2W
  • Connectivity : NMEA2000|NMEA0183|Wifi
  • NMEA2000 inputs : Yes
  • NMEA2000 outputs : Yes
  • NMEA0183 inputs : 3x
  • NMEA0183 outputs : 3x
  • Baud rate : 4800 to 38400 bps
  • Alarm outputs : 1x
  • WiFi supported standards : b|g|n
  • Frequency : 156 - 162.5 MHz
  • Bandwidth : 25kHz

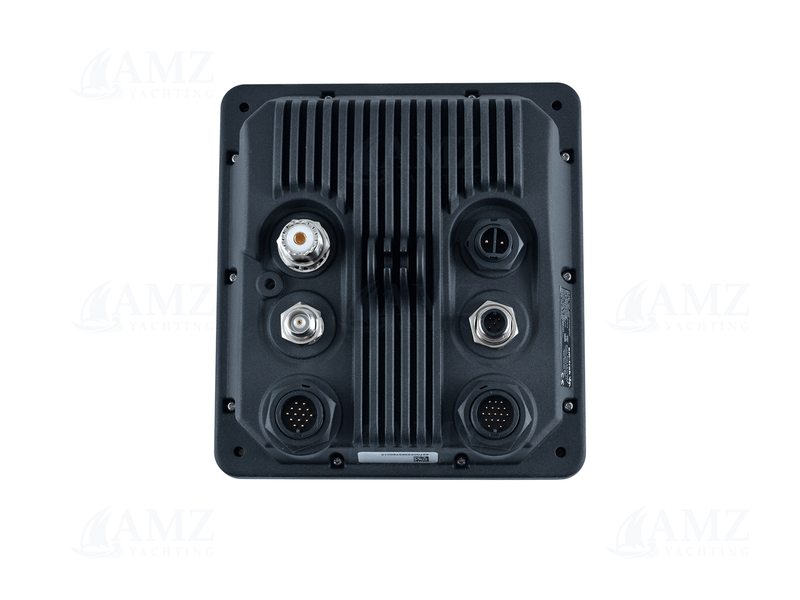

  • Connector type : Micro-C (NMEA2000)|USB|UHF female|TNC female
  • Mounting & Support : Surface mount|Front panel mount
  • Dimensions : 165x152x95mm
  • Product weight : 1.1kg

Package content:

1x Ais transceiver

1x Mounting bracket

1x Manual & documentation

1x Power cable

1x 14Way data cable

1x 18Way data cable

1x GPS antenna

2.842,08 €
