Description

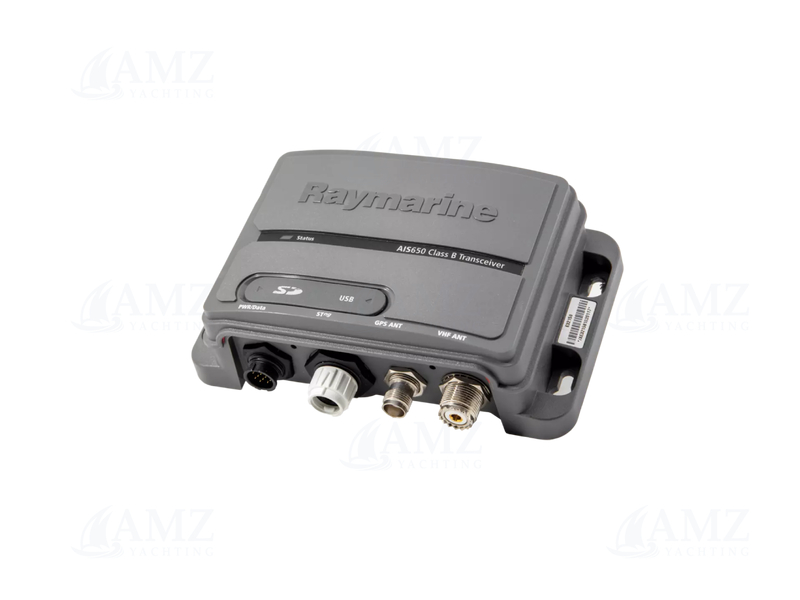

Raymarine's AIS650 is a class B AIS transceiver allowing you to transmit your data to other AIS equipped vessels, and receive their data for viewing right on your Raymarine multifunction display's radar or chartplotter screen.
FEATURES
- Dual channel receivers - AIS vessel monitoring of class A and B transmissions.
- Dedicated 50 channel RAIM compliant GPS receiver for superior accuracy.
- Hardware and software selectable Silent Mode for privacy or security. Silent Mode for privacy or security. Silent mode turns off your AIS transmitter while still enabling you to see transmissions from other vessels.
- SeaTalkNG networking for simple integration with Raymarine C Series Widescreen, E Series Widescreen and G Series systems.
- USB 2.0 port for setup and diagnostics.
- SD Card Slot for recording of AIS data.
- Built-in NMEA multiplexer simplifies integration with legacy Multifunction Displays, VHF radios and 3rd party devices.
Unit not in production.
Replacement unit AIS700
Specifications
- Input supply voltage : 9.6-31.2V DC
- Nominal voltage : 12V|24V
- Power : < 3W
- Connectivity : NMEA2000|NMEA0183
- NMEA2000 inputs : Yes
- NMEA2000 outputs : Yes
- NMEA0183 inputs : 1x
- NMEA0183 outputs : 1x
- Frequency : 156 - 162.5 MHz
- Connector type : Micro-C (NMEA2000)|SeaTalkng|USB|UHF female|N female
Documents
Package content:
1x AIS unit
1x GPS antenna with cable
1x Fixing screws
1x Documentation
