Temperature Sensor 50-150°C / 120-300°F
Veratron / VDO

Veratron / VDO

Temperature Sensor 50-150°C / 120-300°F

SKU: 323-801-010-001D
Available
Add to Cart
Years Warranty
Official Distributor

Description

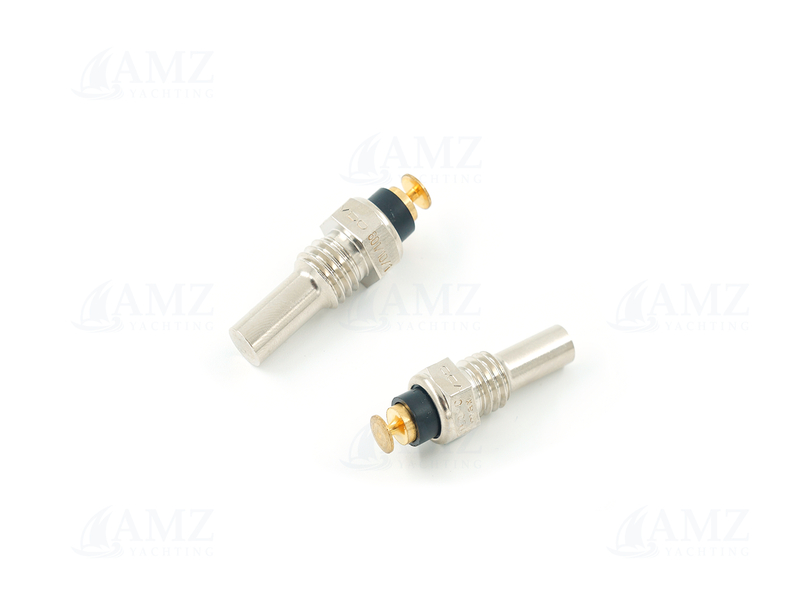

Oil temperature sensor with 1pole common ground, no warning contact and M10x1.5 thread.

Used for: Water, oil, fuel,air.



Sensor not in production.

Limited stock available.

Specifications

  • Nominal voltage : 12V|24V
  • Analogue output type : Resistive (Ω)
  • Signal resistance range : 322.8-18.6Ω
  • Temperature range : 50-150°C/120-300°F
  • Return signal : Common ground
  • Threads : M10x1.5
  • Connector type : AMP male T 6.3x0.8mm

Documents

86,78 €
