Temperature Sensor 40-120°C / 105-250°F
Veratron / VDO

Veratron / VDO

Temperature Sensor 40-120°C / 105-250°F

SKU: 323-801-001-007N
Available
Add to Cart
Years Warranty
Official Distributor

Description

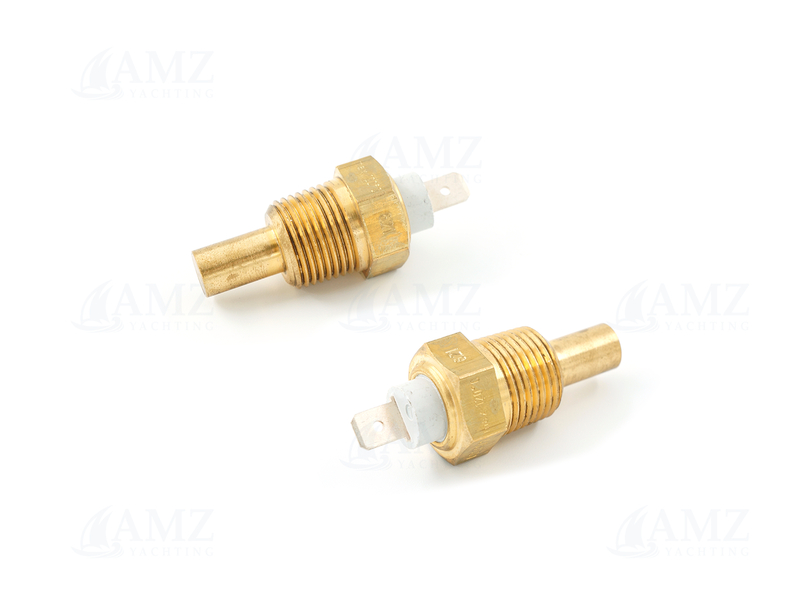

Coolant temperature sensor with 1pole common ground, no warning contact and 3/8" - 18 NPTF thread.

Used for: Water, oil, fuel,air.

Specifications

  • Nominal voltage : 12V|24V
  • Analogue output type : Resistive (Ω)
  • Signal resistance range : 287.4-22.7Ω
  • Temperature range : 40-120°C/105-250°F
  • Return signal : Common ground
  • Threads : 3/8" - 18 NPTF
  • Connector type : M4 AMP male 6.3x0.8mm
