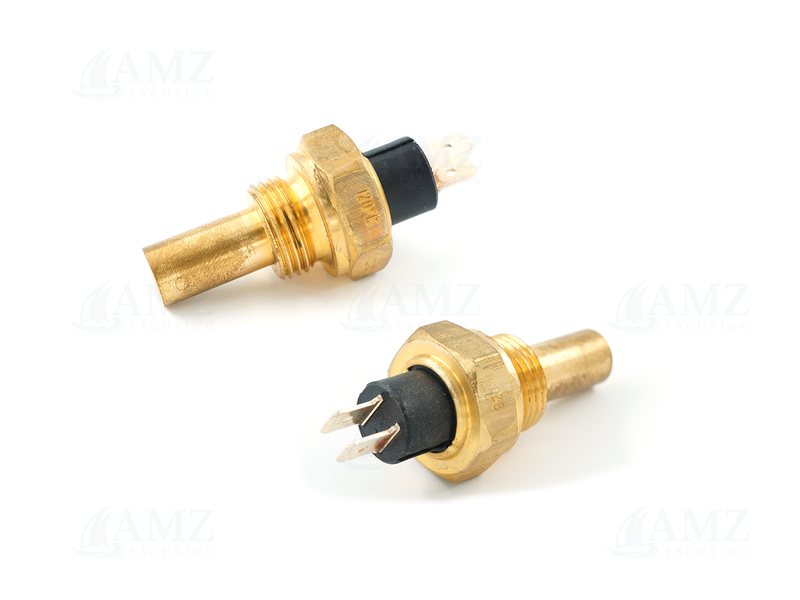

Temperature Sensor 40-120°C / 105-250°F
Veratron / VDO

Veratron / VDO

Temperature Sensor 40-120°C / 105-250°F

SKU: 323-805-001-015N
Available
Add to Cart
Years Warranty
Official Distributor

Description

Coolant temperature sensor with 2pole insulated return, no warning contact and M18x1.5 thread.

Used for: Water, oil, fuel,air.



Sensor not in production.

Limited stock available.

Specifications

  • Nominal voltage : 12V|24V
  • Analogue output type : Resistive (Ω)
  • Signal resistance range : 287.4-22.7Ω
  • Temperature range : 40-120°C/105-250°F
  • Return signal : Insulated return
  • Threads : M18x1.5
  • Connector type : M4 AMP male 6.3x0.8mm

Documents

86,78 €
