Pressure Sensor 5BAR/80PSI Pressure Sensor 5BAR/80PSI
Veratron / VDO

Veratron / VDO

Pressure Sensor 5BAR/80PSI

SKU: 360-081-029-041C
Available
Add to Cart
Years Warranty
Official Distributor

Description

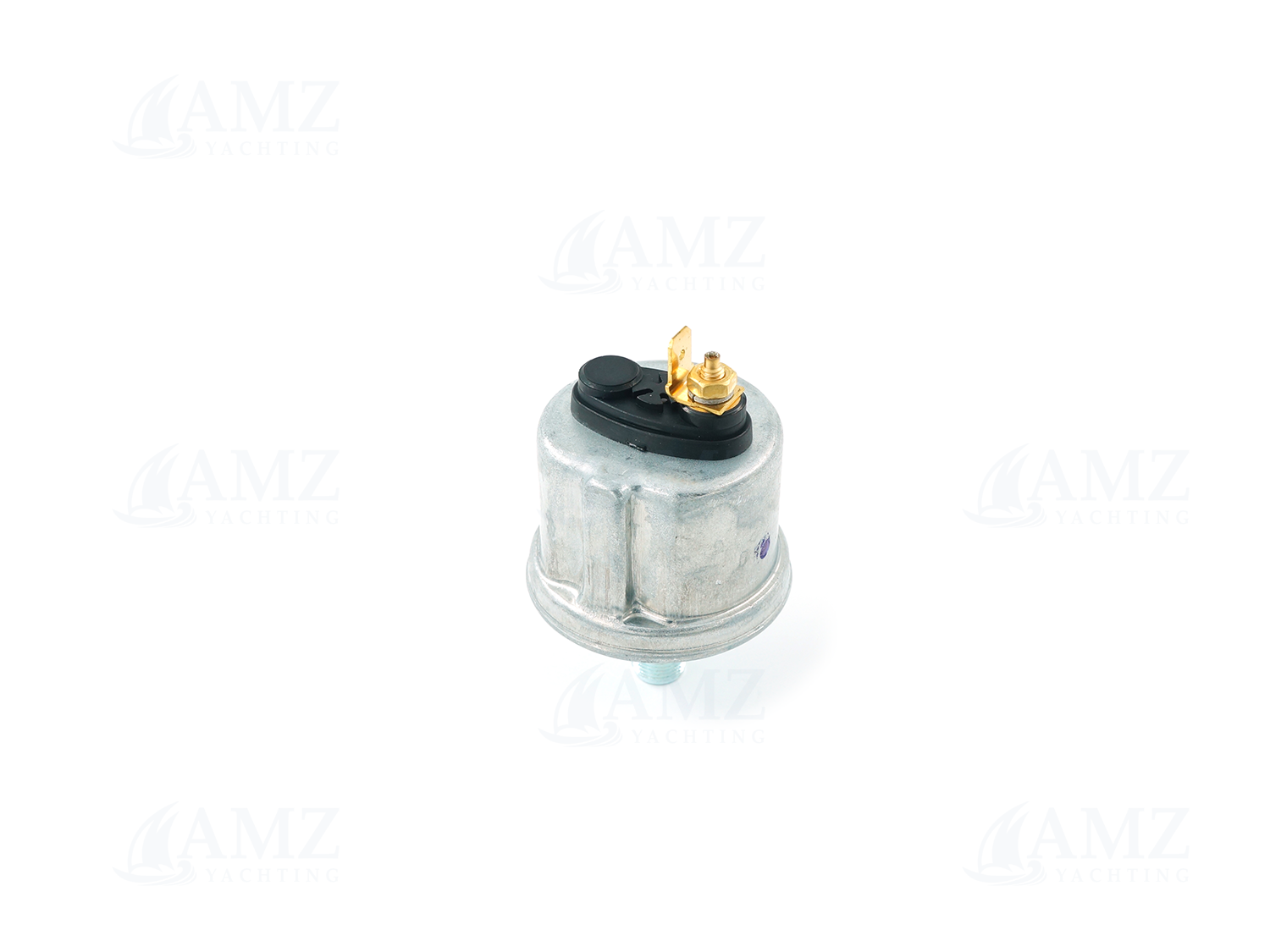

Pressure sensor 5bar/80psi, 1pole with common ground, no warning contact and 1/8-27NPTF thread.

Used for: Oil, fuel, air



Sensor not in production.

Limited stock available.

Specifications

  • Nominal voltage : 12V|24V
  • Analogue output type : Resistive (Ω)
  • Signal resistance range : 10-184Ω
  • Pressure range : 5BAR/80PSI
  • Return signal : Common ground
  • Threads : 1/8" - 27 NPTF
  • Connector type : M4 AMP male 6.3x0.8mm

Documents

123,97 €
Add to Cart
