Pressure Sensor 10BAR/150PSI Pressure Sensor 10BAR/150PSI
Veratron / VDO

Veratron / VDO

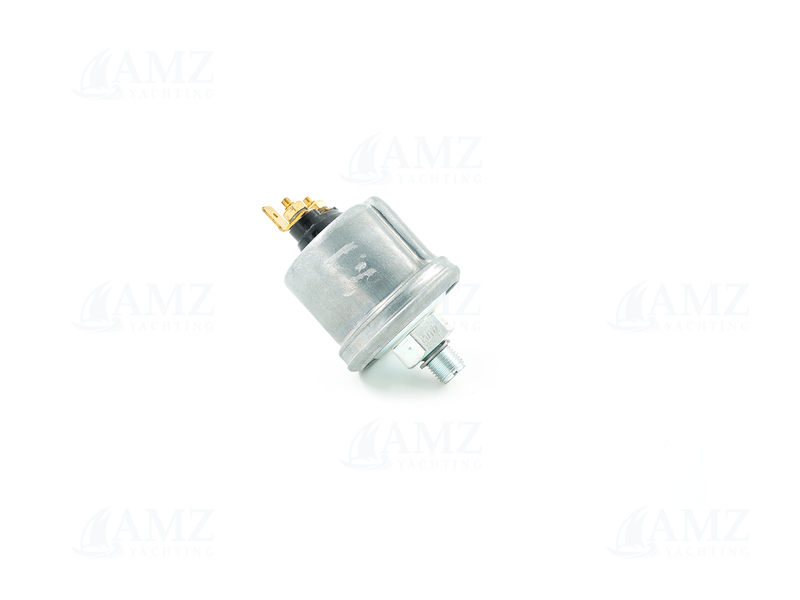

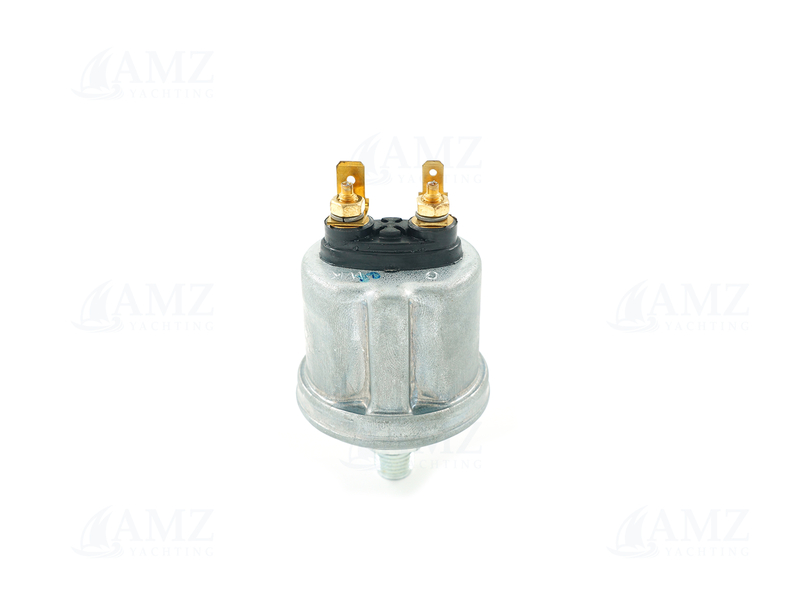

Pressure Sensor 10BAR/150PSI

SKU: 360-081-030-112C
Available
Add to Cart
Years Warranty
Official Distributor

Description

Pressure sensor 10bar/150psi with common ground, warning contact and M10x1 thread.

Used for: Oil, fuel, air


Sensor not in production.

Limited stock available.

Specifications

  • Nominal voltage : 12V|24V
  • Analogue output type : Resistive (Ω)
  • Signal resistance range : 0-180Ω
  • Pressure range : 10BAR/150PSI
  • Return signal : Common ground
  • Warning contact's range : 1.35bar
  • Threads : M10x1
  • Connector type : M4 AMP Male 4.8x0.8mm 90°

Documents

84,12 €
