Pressure Sensor 25BAR/350PSI Pressure Sensor 25BAR/350PSI
Veratron / VDO

Veratron / VDO

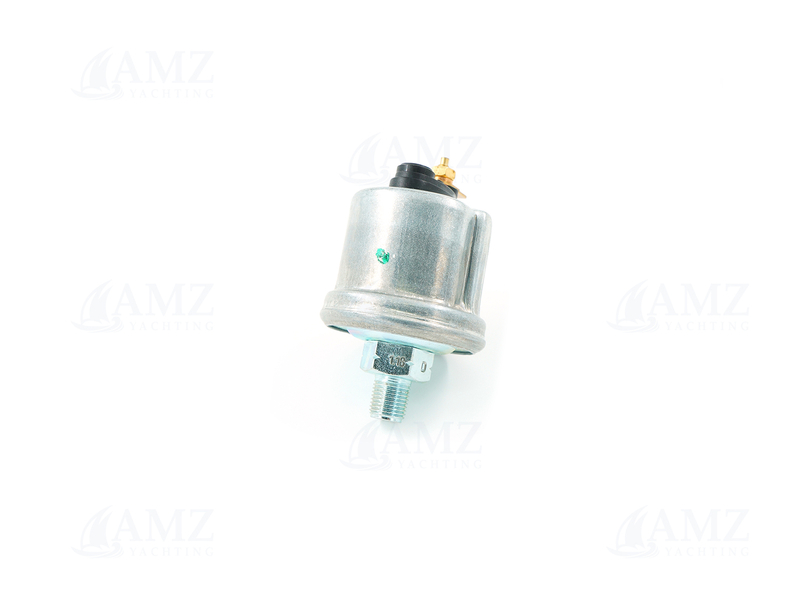

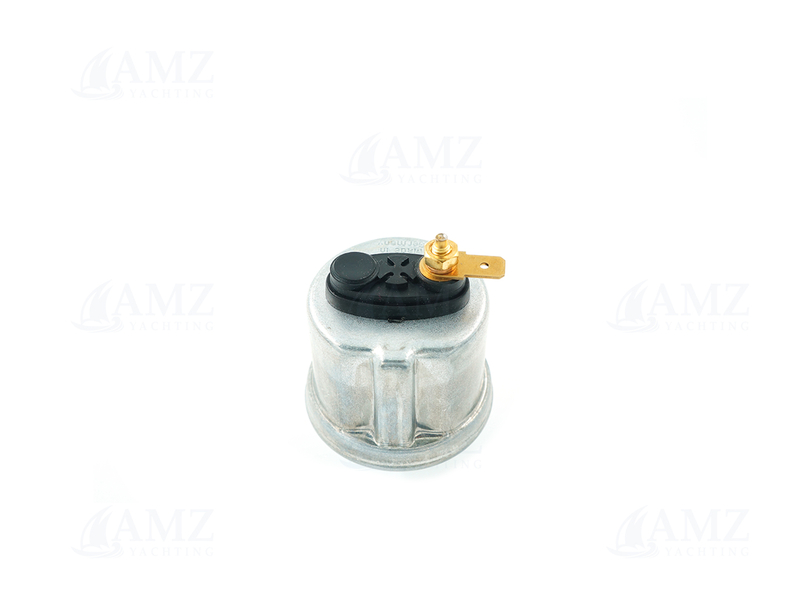

Pressure Sensor 25BAR/350PSI

SKU: 362-081-004-001C
Available
Add to Cart
Years Warranty
Official Distributor

Description

Pressure sensor 25bar/350psi, 2pole with common ground, no warning contact and 1/8" - 27 NPTF thread.

Used for: Oil, fuel, air



Sensor not in production.

Limited stock available.

Specifications

  • Nominal voltage : 12V|24V
  • Analogue output type : Resistive (Ω)
  • Signal resistance range : 0-90Ω
  • Pressure range : 25BAR/350PSI
  • Return signal : Common ground
  • Threads : 1/8" - 27 NPTF
  • Connector type : M4 AMP male 6.3x0.8mm

Documents

123,98 €
