Veratron / VDO

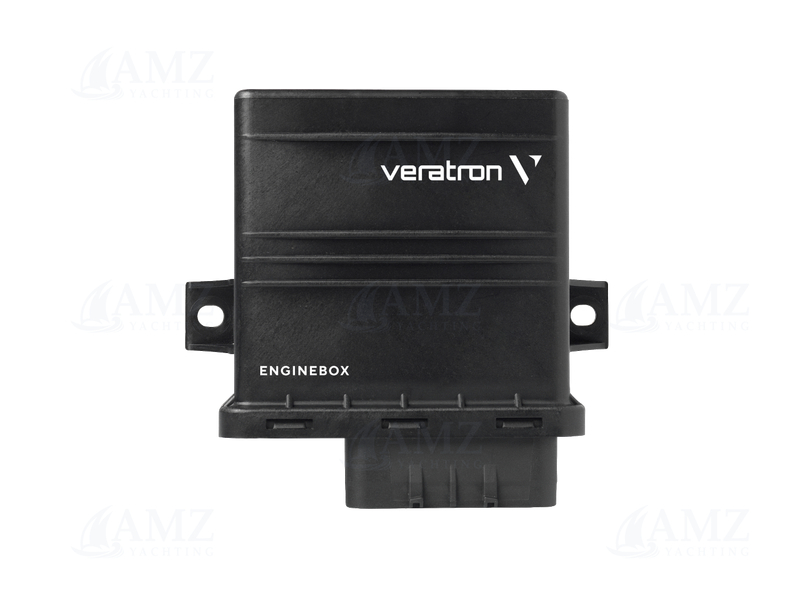

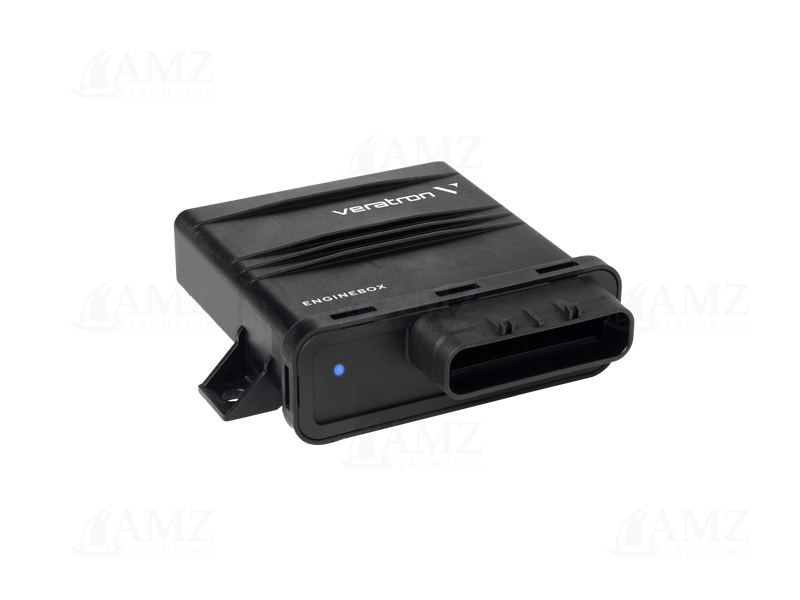

Engine Box single - NMEA 2000

SKU: A2C1824820001
Available
Add to Cart
Years Warranty
Official Distributor

Description

EngineBox is able to convert various signals into NMEA 2000 strings so that all data is shared with all devices in the NMEA 2000 network.

The single engine version can manage: one engine with output in frequency, one engine with SAE J1939 output and eight analog inputs.

The EngineBox can also be used on older, completely analogue engines, thanks to the analogue input ports provided and designed for: RPM data, 0- 400 Ohm sensors and 4-20mA sensors.

Specifications

  • Input supply voltage : 9-32 V DC
  • Nominal voltage : 12V|24V
  • Consumption : 150mA @12V
  • Connectivity : NMEA2000|J1939
  • NMEA2000 inputs : Yes
  • NMEA2000 outputs : Yes
  • J1939 input : 1x
  • Data transfer/conversion : J1939 to NMEA2000|Analogue to NMEA2000
  • Analogue input type : Capacitive (mA)|Resistive (Ω)|Frequency (Hz)|Voltage (V)
  • Resistive signal inputs (Ω) : 4x
  • Capacitive signal inputs (mA) : 2x
  • Voltage signal inputs (V) : 2x
  • Frequency signal inputs (Hz) : 1x
  • Signal resistance range : 0-400Ω
  • Signal voltage range : 0-5V
  • Integrated features : Engine hour meter
  • Connector type : Micro-C (NMEA2000)
  • Dimensions : 120mm(L)x130mm(W)x40mm(H)
banner

Inputs


EB1 - Single engine box:



  • 4 analog inputs 0-400Ω
  • 2 analog inputs 0-5V
  • 2 analog inputs 4-20mA
  • 1 frequency input 0-4kHz
  • 1 SAE J1939 input
  • 1 NMEA2000

Package content:


1x EngineBox

1x Cable harness

1x Safety instructions
