LinkUp 2-in-1 Gateway LinkUp 2-in-1 Gateway
Veratron / VDO

Veratron / VDO

LinkUp 2-in-1 Gateway

SKU: B00070501
Available
Add to Cart
Years Warranty
Official Distributor

Description

The LinkUp 2-in-1 measures simultaneously the engine oil temperature and pressure while providing the data to the linkup which translates it to the NMEA2000 standard.

The devise is designed to fit one specific sensor. This sensor measures temperature and pressure. It can be applied for engine- or transmission oil.

Specifications

  • Nominal voltage : 12V
  • Consumption : ≤ 15 mA
  • Connectivity : NMEA2000
  • NMEA2000 outputs : Yes
  • Data transfer/conversion : Analogue to NMEA2000
  • Temperature range : -40°C to +160°C
  • Pressure range : 0.5 to 10.5BAR
  • Connector type : Micro-C (NMEA2000)|Hirschmann 3way 1.2

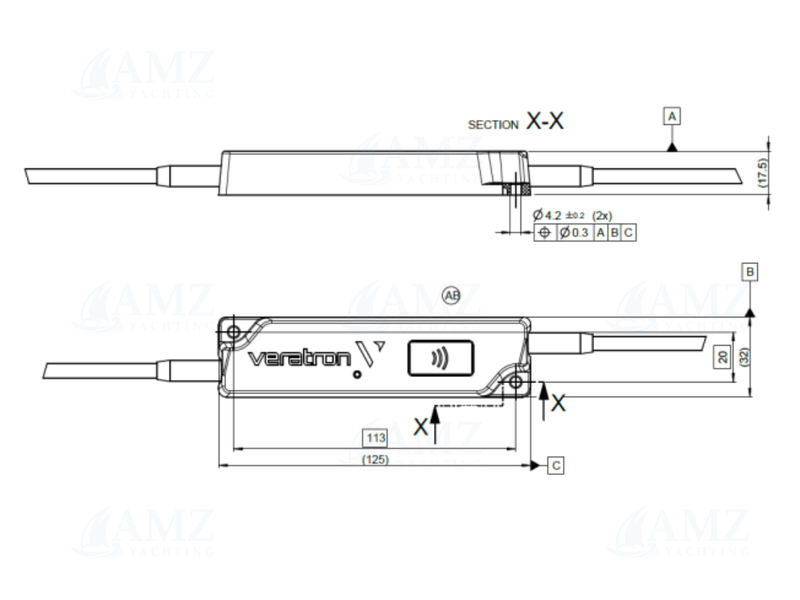

  • Dimensions : 125x17.5x32mm

Documents

Wireless configuration:

The parameters of the sensor are configured to type, instance and warning threshold on the mobile device and then tapped against the LinkUp device for instant data download.

199,15 €
