Veratron / VDO
ViewLine Flex 52 NMEA2000 Gauge
SKU: -
Choose Color variant
Add to Cart
Years
Warranty
Official
Distributor
Description
The VL Flex 52 - NMEA 2000 supports input from analog sensors as well as NMEA 2000 and LIN 2.0.
Specifications
- Input supply voltage : 8-32 VDC
- Nominal voltage : 12V|24V
- Consumption : 50mA
- Liquid type : Fuel|Fresh water|Waste water
- Connectivity : NMEA2000|NFC
- NMEA2000 inputs : Yes
- NMEA2000 outputs : Yes
- LIN inputs : 1x
- Data transfer/conversion : Analogue to NMEA2000
- Analogue input type : Resistive (Ω)|Frequency (Hz)|LIN Bus
- Resistive signal inputs (Ω) : 1x
- Frequency signal inputs (Hz) : 1x
- Signal resistance range : 0-180Ω|3-180Ω|10-184Ω|0-90Ω|90-4Ω|240-33Ω|240-33.5Ω|287.4-22.7Ω|322.8-18.6Ω|0-400Ω|2k Ω
- Temperature range : 40-120°C/105-250°F|50-150°C/120-300°F|+50°C/+120°F|120°C/250°F|150°C/300°F|250°F/120°C|900°C/1650°F|100-900°C
- Angle range : -40°/+40°|-45°/+45°
- RPM range : 3000rpm|4000rpm|5000rpm|6000rpm|7000rpm|8000rpm
- Pressure range : 2BAR/30PSI|5BAR/80PSI|10BAR/150PSI|25BAR/350PSI|30BAR/435PSI|150PSI/10BAR|400PSI/25BAR
- Connector type : Micro-C (NMEA2000)|Hirschmann 8pin
- Color : White|Black
- Diameter : 52mm
Related products

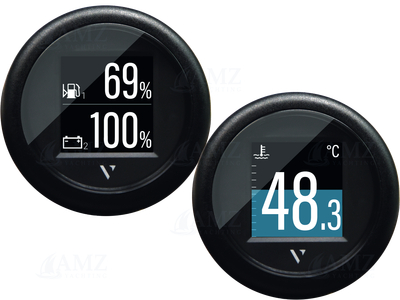

Single or dual layout presentation

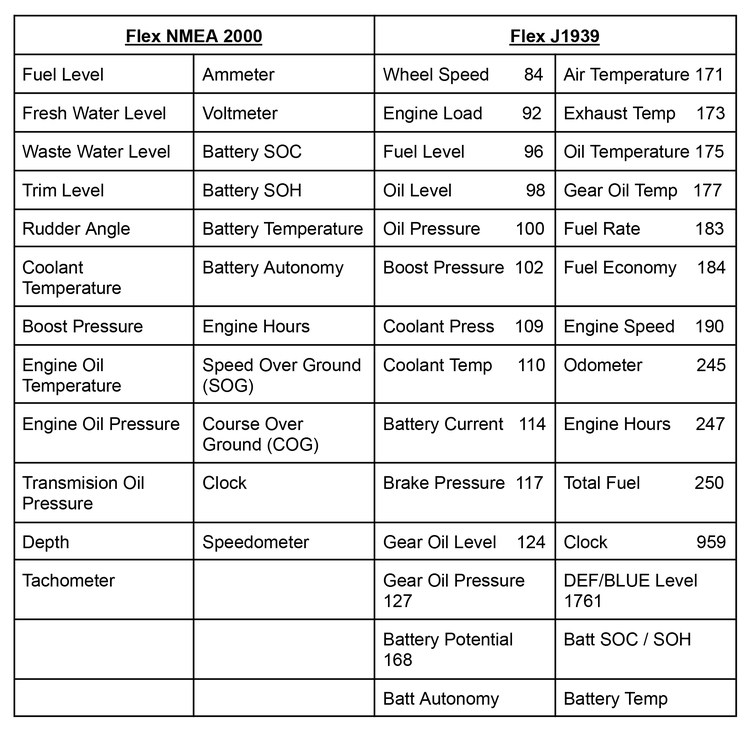

Fuel Level, Fresh Water Level, Waste Water Level, Trim Level, Rudder Angle, Coolant Temperature, Boost Pressure, Engine Oil Temperature, Engine Oil Pressure, Transmission Oil Pressure, Depth, Tachometer, Speedometer, Ammeter, Voltmeter, Battery SOC, Battery SOH, Battery Temperature, Battery Autonomy, Engine Hours, SOG, COG, Clock

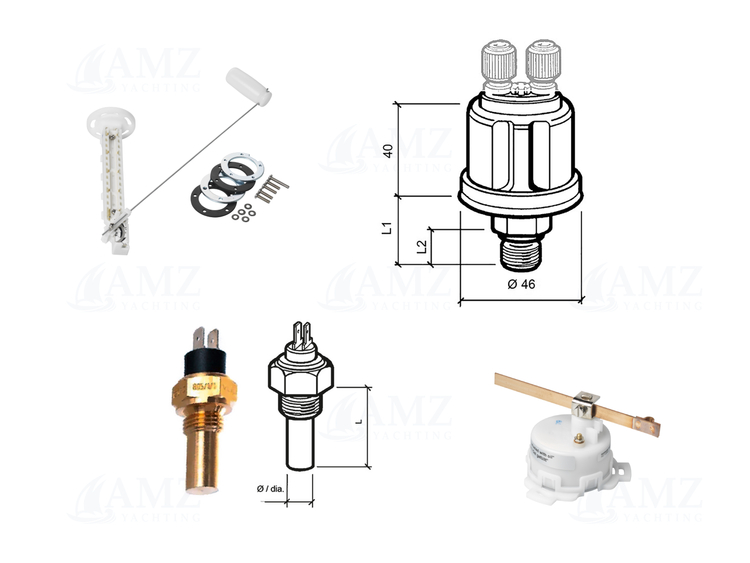

Analog connectivity
The supported analog inputs allow you to directly read from your engine sensors.
Frequency input:
Engine RPM sensors and Speed sensors
Resistive input:
Tank level, Temperature, Pressure, Rudder and Trim sensors
Digital network connectivity
The CAN interface expands this possibility by allowing the device to read from the digital network.
Lin connectivity:
Intelligent battery sensor
Can port:
NMEA 2000 or SAE J1939
NFC interface:
Contactless device configuration

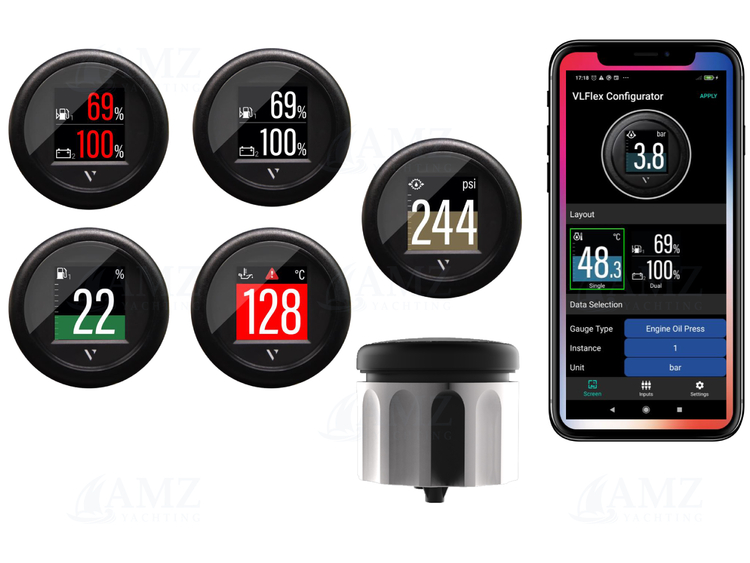

Contactless configuration
- Device configuration via smartphone companion app
- Setup your device with the user-friendly app
- "Tap" the smartphone onto the instrument lens to configure it instantly
Package content:
1x VL Flex 52 – NMEA 2000
1x 52 mm spinlock nut
1x wiring harness
1x safety instructions
