Veratron / VDO

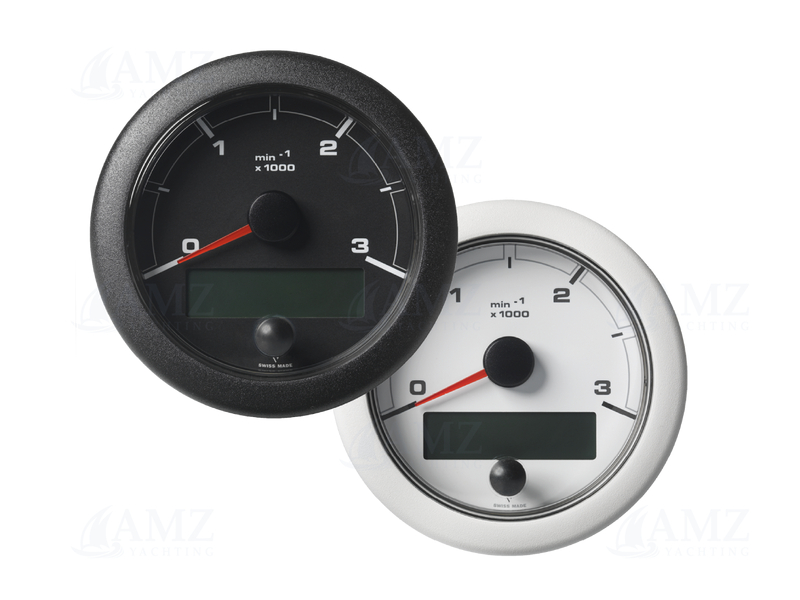

OceanLink Tachometer with LCD Gauge 85mm

SKU: -
Choose Color variant, Engine revolution variant
Add to Cart
Years Warranty
Official Distributor

Description

The OceanLink 85mm Master Tachometer automatically presents all the key data –oil pressure and fuel consumption to operating hours.

The OceanLink Master gauge displays all important engine related data and distributes it to up to 16 52mm satellite gauges.


Specifications

  • Input supply voltage : 9-32 V DC
  • Nominal voltage : 12V|24V
  • Consumption : < 150 mA
  • Connectivity : NMEA2000|EasyLink|J1939
  • NMEA2000 inputs : Yes
  • NMEA2000 outputs : Yes
  • J1939 input : 1x
  • EasyLink : 1x
  • Analogue input type : Resistive (Ω)|Frequency (Hz)
  • Resistive signal inputs (Ω) : 2x
  • Frequency signal inputs (Hz) : 1x
  • Alarm outputs : 1x
  • RPM range : 3000rpm|5000rpm|7000rpm
  • Connector type : Micro-C (NMEA2000)|AMP superseal plug
  • Color : White|Black
  • Diameter : 85mm

Package content:


1x Tachometer gauge

1x Bezel

1x Rubber seal

1x Mounting spinlock

1x Connection cable
