Blue Sea Systems
M2 DC Multimeter with SoC
SKU: 1830
Available
Add to Cart
Years
Warranty
Description
DC SoC Monitor measures the voltages of up to three battery banks and current draw on one battery bank.
Provides battery State of Charge (SoC), capacity, amp hours (Ah) remaining, and charge cycles on Battery 1.
Features:
- Supports programmable shunt ratios
- External relay activation
Specifications
- Input supply voltage : 7-70V DC
- Nominal voltage : 12V|24V|48V
- Alarm outputs : 1x
- Current range : -500/+500A
- Integrated features : SoC (State-of-Charge)|Battery capacity|Amp hours (Ah)|Charge cycles
- Mounting & Support : Surface mount|Flush mount
- Dimensions : 82.40x82.40x60.07mm
- Product weight : 1.81kg
Related products
Package content:
1x M2 Monitor
1x Surface mount bezel & Gasket
1x Surface mount cover
1x Flat mount bezel & Clamp
1x Mounting ring & Nut

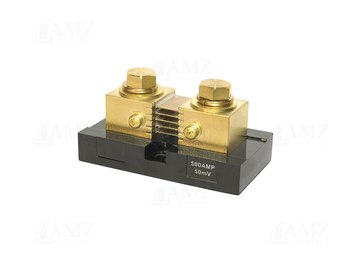

1x Shunt
1x Connectors
1x Screwdriver
481,61 €
