e-Series Dual Circuit Plus Battery Switch e-Series Dual Circuit Plus Battery Switch e-Series Dual Circuit Plus Battery Switch
Blue Sea Systems

Blue Sea Systems

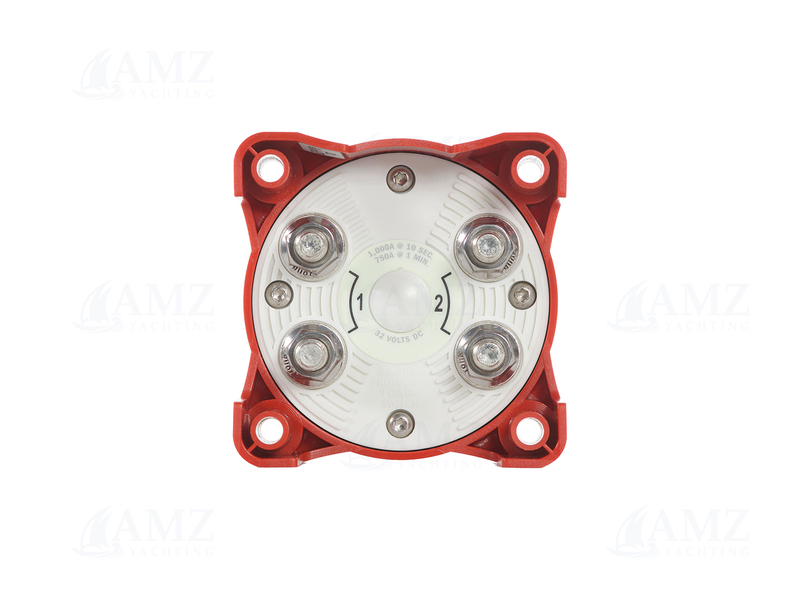

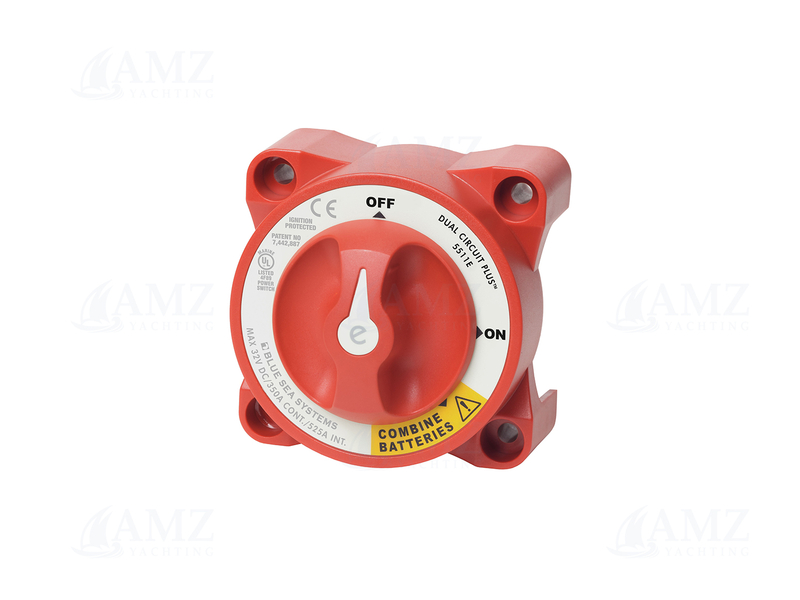

e-Series Dual Circuit Plus Battery Switch

SKU: 5511e
Available
Add to Cart

Description

Simultaneously switches two isolated battery banks or combines battery banks to all loads.


Features:

  • Make-before-break contact design allows switching without power interruption
  • Ignition protected—safe for installation aboard gasoline powered boats

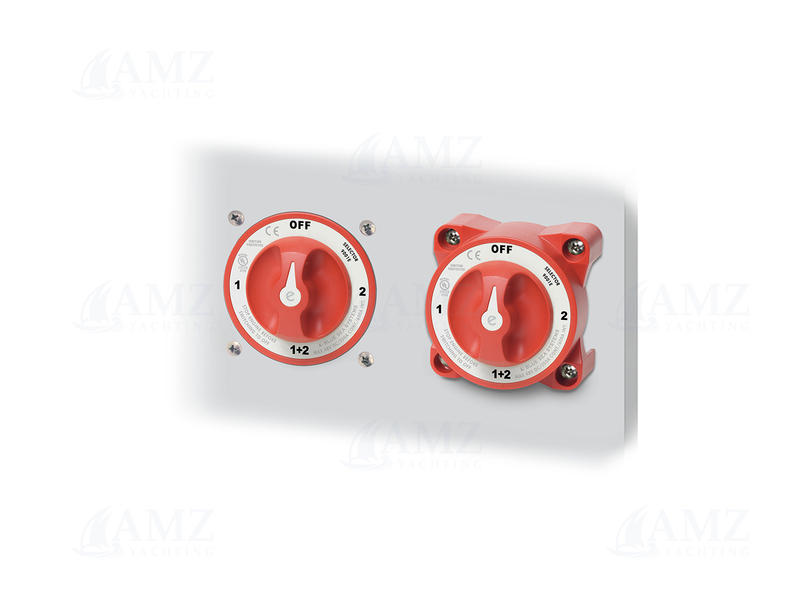

  • Case design allows surface or rear panel mounting

Specifications

  • Input supply voltage : 32V DC
  • Nominal voltage : 12V|24V
  • Permanent current : 350A
  • Maximum current (peak) : 1000A
  • Extras : Battery combiner|2 battery inputs
  • Action ( )=momentary : OFF-ON
  • Circuit : Dual
  • Switch positions : 3
  • Color : Red
  • Mounting & Support : Surface mount|Rear panel mount
  • Dimensions : 98x98x76mm
  • Product weight : 0.59kg

Documents

93,37 €
