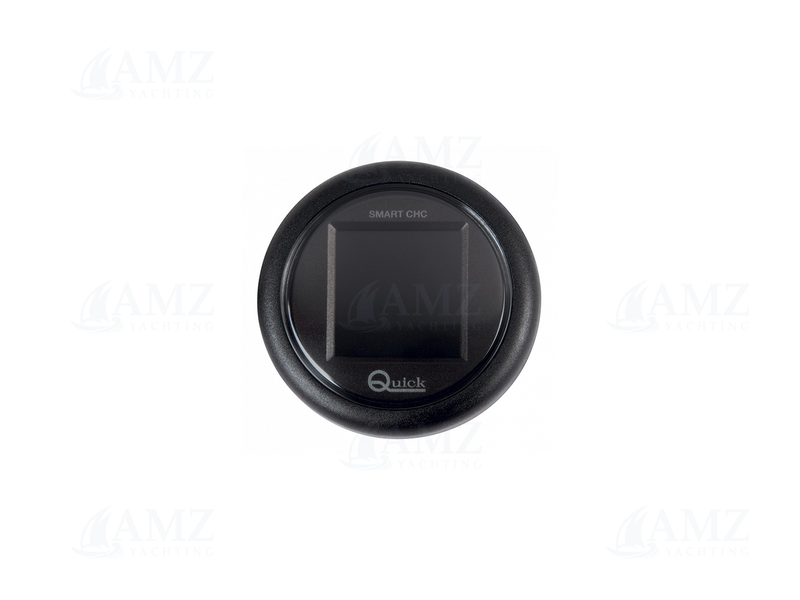

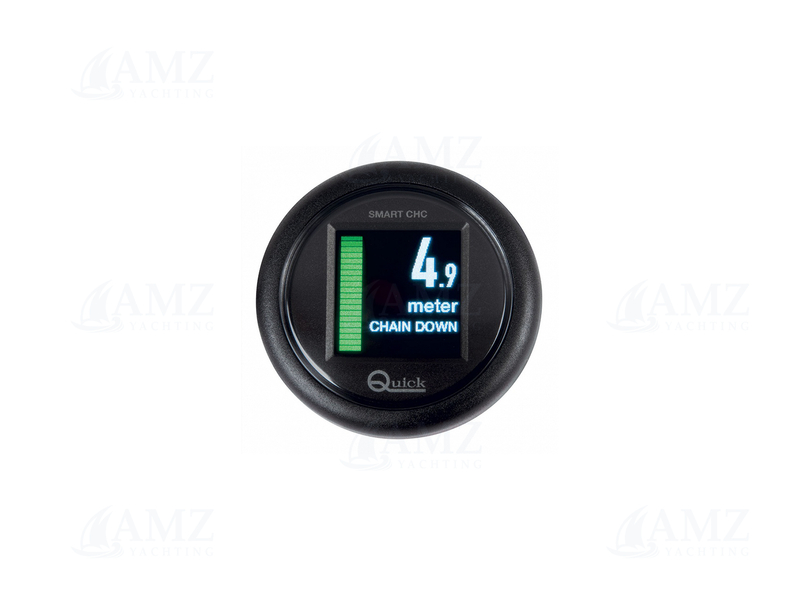

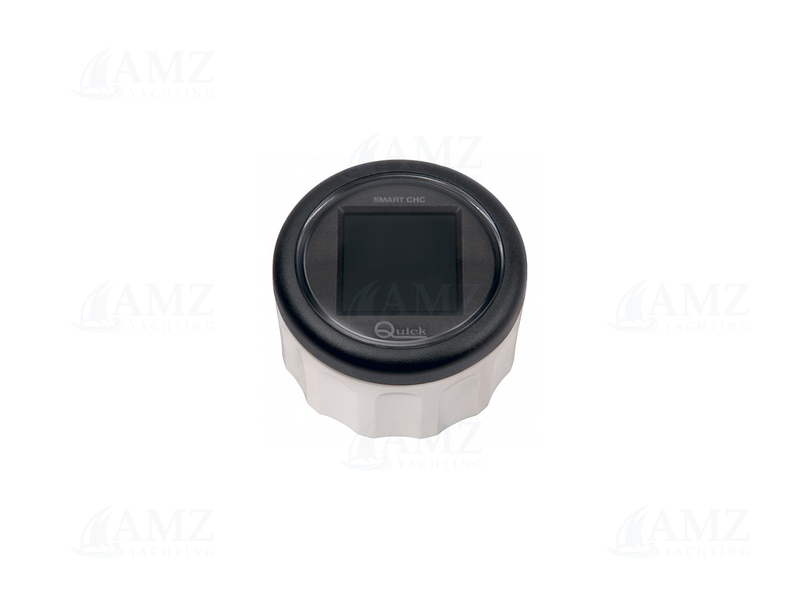

Chain Counter CHC Smart

The SMART CHC is a gauge that allows the user to display the size of the chain lowered by the windlass to which it is connected.

SMART CHC may be used with all windlasses controlled by DC voltage ON/OFF signals and equipped with a sensor to detect the rotations of the gypsy.

Thanks to the NFC contactless technology, the SMART CHC can be via smartphone using the dedicated App.

Features:

• TFT color monitor (1.44”) legible in sunlight
• Configuration from your smartphone with a simple tap thanks to the NFC connection
• Measurement of the lowered chain in meters or feet
• Backlight settable on 5 levels
• Indication of the actions carried out with the windlass
• Compatibility with windlasses equipped with auto free fall
• Low supply voltage warning
• Warning of sensor failure or warning motor manoeuvre in progress
• Warning of activation of opposing commands.12/24 V supply voltage
• Protection against polarity inversion
• Easy installation (Ø 52 mm opening) with mounting using a threaded ring-nut
• P67 degree protection (above panel.)
