e-Series Selector Battery Switch e-Series Selector Battery Switch
Blue Sea Systems

Blue Sea Systems

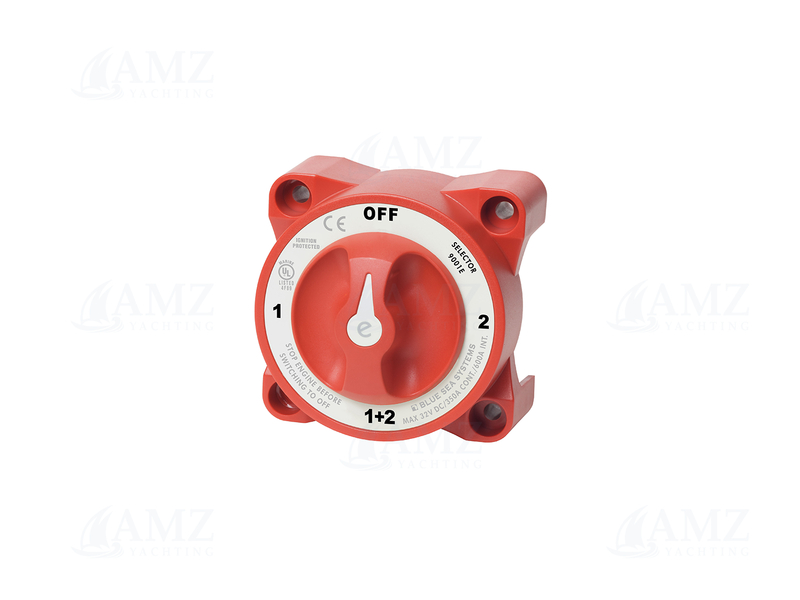

e-Series Selector Battery Switch

SKU: 9001e
Available in 1 - 3 days
Add to Cart

Description

Switches isolated battery banks to all loads or combines battery banks to all loads.

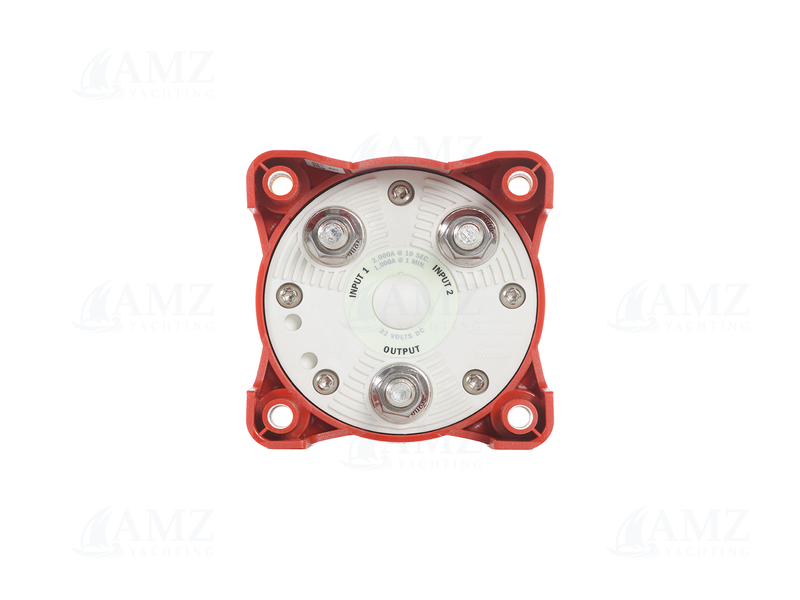

The 9001e Battery switch has 2 Battery inputs & 4 positions switches.

Specifications

  • Input supply voltage : 32V DC
  • Nominal voltage : 12V|24V
  • Permanent current : 350A
  • Maximum current (peak) : 1200A
  • Extras : Battery combiner|2 battery inputs
  • Switch positions : 4
  • Color : Red
  • Mounting & Support : Surface mount|Rear panel mount
  • Dimensions : 97.79x97.79x78.67mm
  • Product weight : 0.59kg

Documents

73,16 €
