Actisense

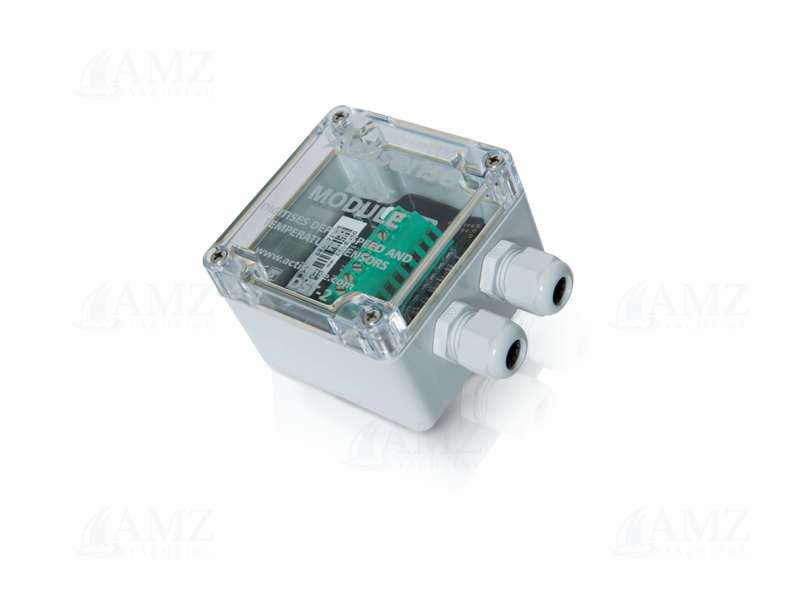

Depth, Speed & Temperature to NMEA0183 Converter
SKU: DST-2-170khz
Available
Add to Cart
Years
Warranty
Official
Distributor
Description
The DST-2 converts analog signal from depth/speed & temperature transducers to NMEA0183.
Specifications
- Input supply voltage : 10-28 V DC
- Consumption : 40mA @ 12 VDC
- Connectivity : NMEA0183
- Serial port compatibility : RS422|RS232|RS485|NMEA 0183
- Baud rate : 4800 to 38400 bps
- Transducer inputs : Depth|Log (boat speed)|Temperature
- Speed transducer inputs : 1x
- Depth transducer inputs : 1x
- Temperature transducer inputs : Water
- Frequency : 170kHz

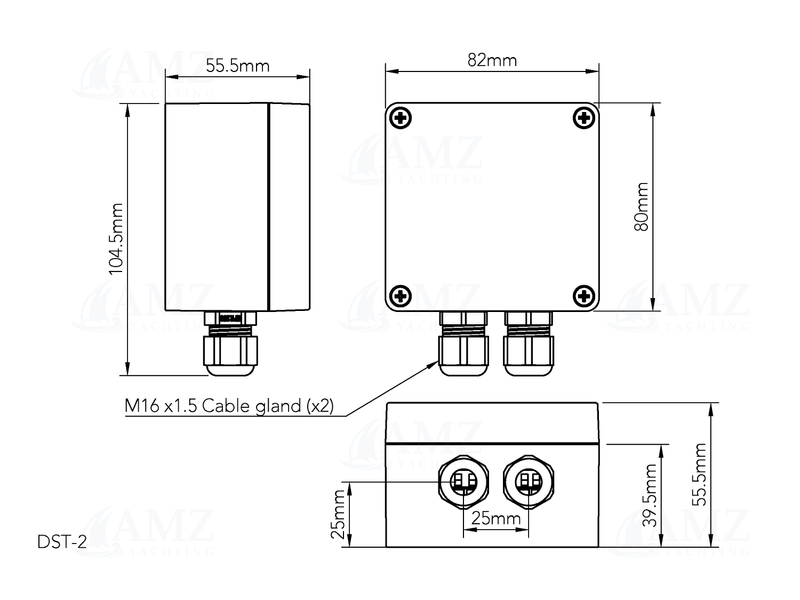

- Dimensions : 106mm(L)x82mm(W)x55mm(H)
Related products
Network diagram
Use with most NMEA 0183 displays, can be calibrated, trip data available with speed transducers, designed to replace outdated stand-alone echo sounders
