Blue Sea Systems

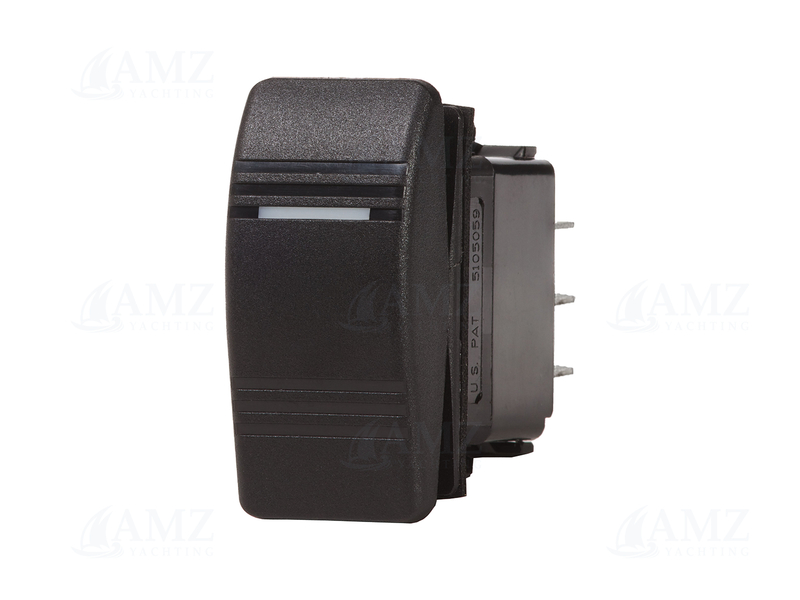

Contura Switch SPST Black
SKU: 8282
Available
Add to Cart
Description
Specifically manufactured for use in Blue Sea Systems Contura Water Resistant Panels.
Features:
- Vibration, shock, thermoshock, moisture and salt spray resistant
- Mounts in Blue Sea Systems Contura Water Resistant Panels and Contura Switch Mounting panels
- Ignition Protected - Safe for installation aboard gasoline powered boats
- Meets UL1500 and ISO8846 ignition protection requirements
Common applications: Lights
Specifications
- Nominal voltage : 12V|24V
- Extras : LED ON
- Action ( )=momentary : OFF-ON
- Circuit : Single
- LED light : Amber

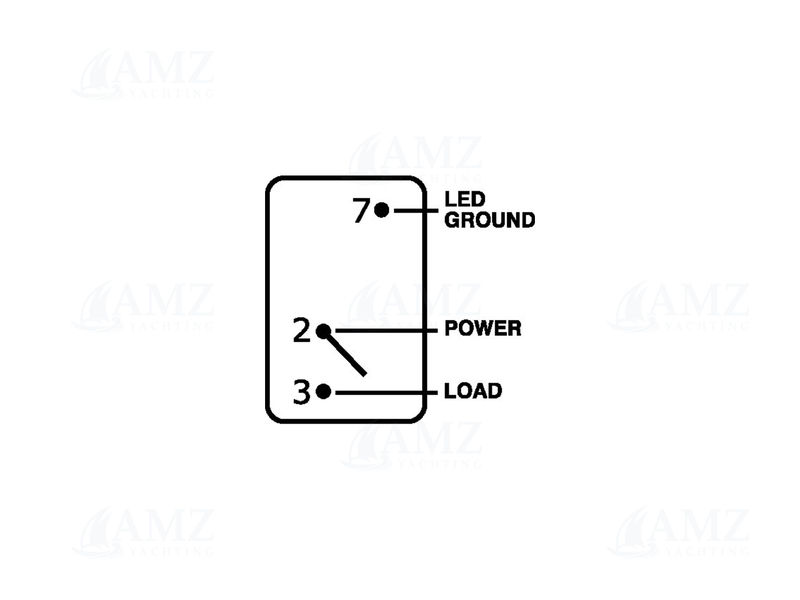

- Terminals : 2
- Color : Black

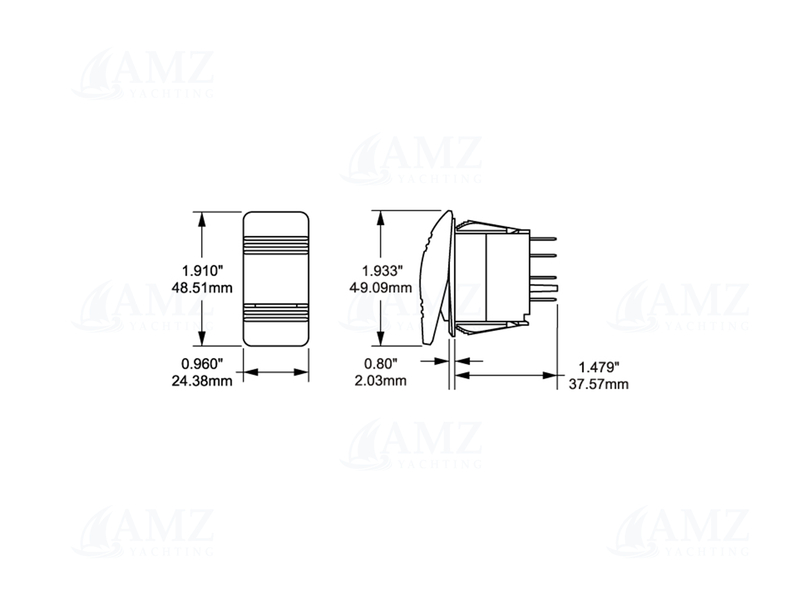

- Dimensions : 48.51x37.57x24.38mm
- Product weight : 0.04kg
Related products

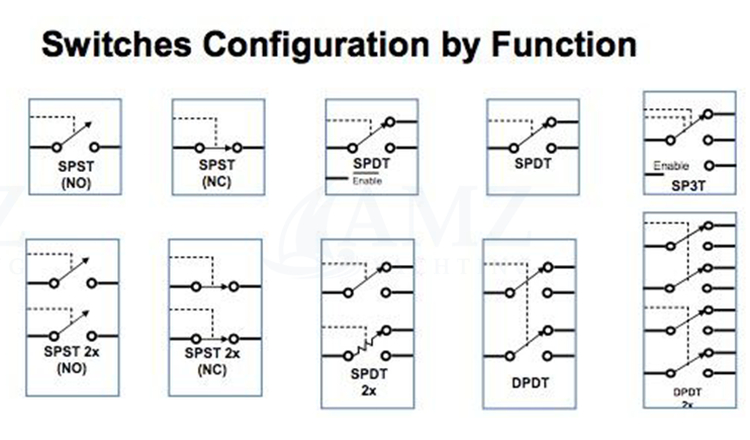

Switch Type:
SPST: Turns a single circuit on and off
SPDT: Turns one of two circuits on
DPST: Turns two circuits on at the same time
DPDT: Turns one circuit in each of 2 pairs of circuits
Switch Action:
( ) = Momentary
