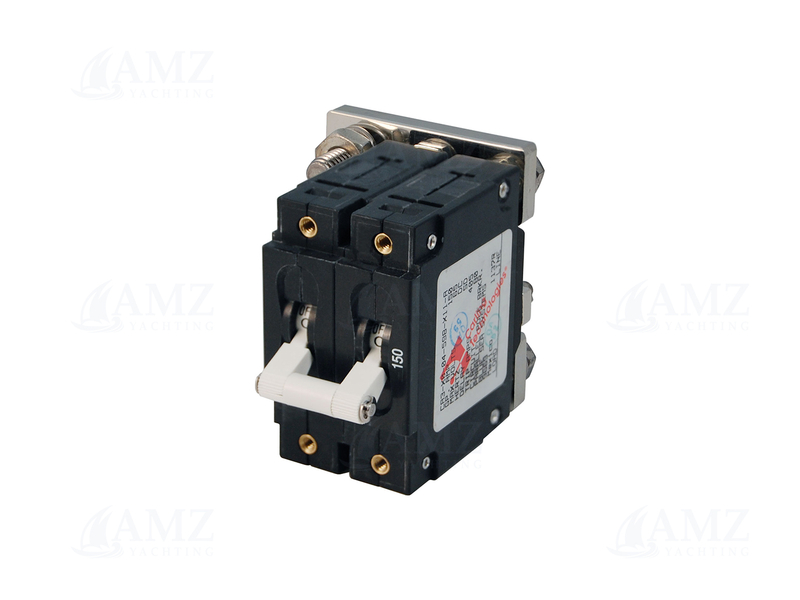

Description
Features:
- Paralleled poles have 5/16" stud on bus
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- "Trip Free" - cannot be held closed after trip
Interrupt capacity: 5000A @ 65V DC
Specifications
- Input supply voltage : 120V AC - 240V AC - 65V DC
- Nominal voltage : 12V|24V|48V|230V
- Permanent current : 150A
- Circuit : Dual
- Color : White
- Material : Stainless steel

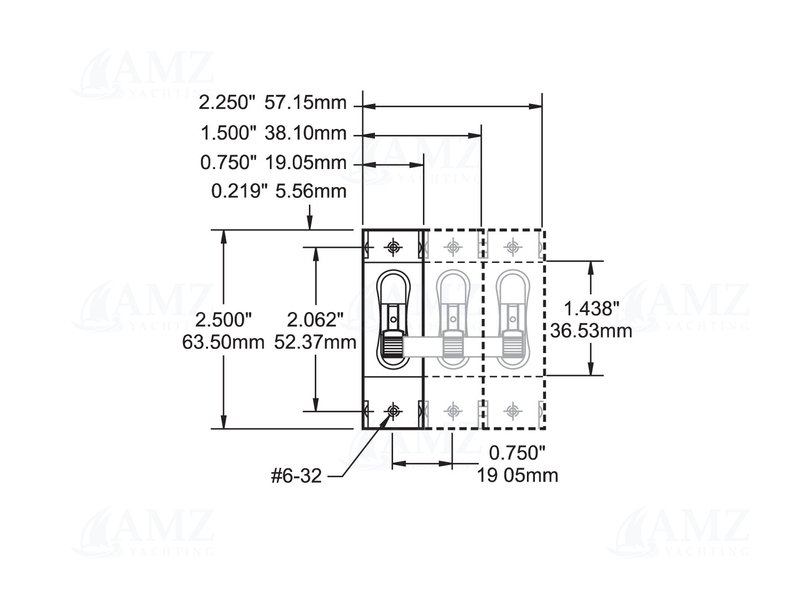

- Dimensions : 63.50x57.15mm
- Product weight : 0.29kg
