Description

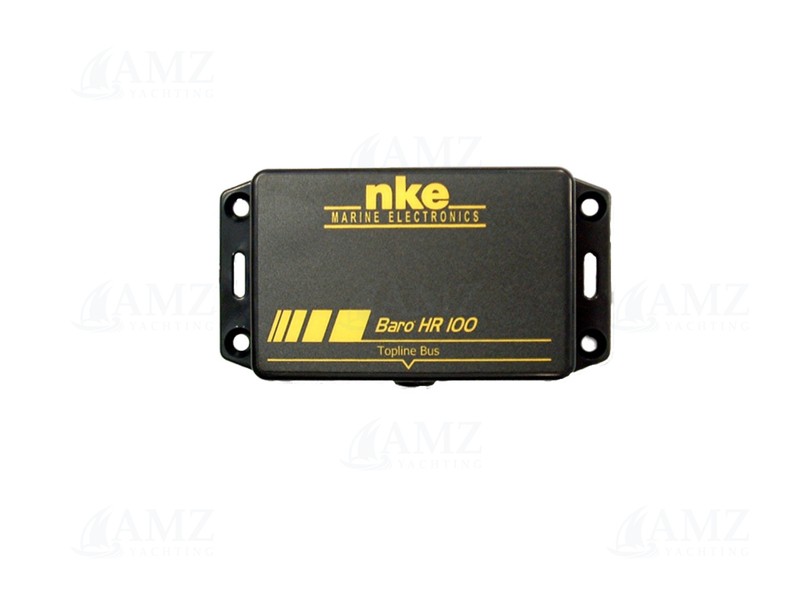

The Barometer HR 100 sensor is a measuring instrument that provides instant atmospheric pressure as well as the pressure variation over the previous 10 hours.
It can be connected to the nke TOPLINE bus of your installation, or, thanks to its NMEA 0183 output, to any NMEA receiver that processes MMB, MTA and XDR frames.
In addition, the Barometer HR 100 is fitted with a meter for engine hours, thus allowing to have an account of the hours of use of your engine.
Old product SKU:
90-60-358
Specifications
- Input supply voltage : 10-16 V DC
- Nominal voltage : 12V
- Consumption : 25mA
- Connectivity : NMEA0183|Topline (NKE Bus)
- NMEA0183 outputs : 1x
- Topline (NKE Bus) : Yes
- Alarm outputs : 1x
- Pressure range : 800 to 1100 mBar
- Integrated features : Barometer|Temperature|Engine hour meter
