Veratron / VDO
ViewLine Flex 52 J1939 Gauge
SKU: -
Επιλέξτε Εκδοχή χρώματος
Προσθήκη στο Καλάθι
Χρόνια
Εγγύηση
Επίσημος
Αντιπρόσωπος
Περιγραφή
The VL Flex 52 - J1939 supports input from analog sensors as well as J1939 and LIN 2.0.
Χαρακτηριστικά
- Τάση εισόδου : 8-32 V
- Τάση λειτουργίας : 12V|24V
- Κατανάλωση : 50mA
- Τύπος υγρού : Fuel
- Συνδεσιμότητα : J1939|NFC
- Έξοδοι NMEA2000 : No
- Είσοδοι LIN : 1x
- Τύπος εισόδου : Αντίσταση (Ω)|Συχνότητα (Hz)|LIN Bus
- Είσοδος αντίστασης σήματος : 1x
- Είσοδος συχνότητας σήματος : 1x
- Εύρος θερμοκρασίας : 40-120°C/105-250°F|50-150°C/120-300°F|+50°C/+120°F|120°C/250°F|150°C/300°F|250°F/120°C|900°C/1650°F|100-900°C
- Εύρος RPM : 3000rpm|4000rpm|5000rpm|6000rpm|7000rpm|8000rpm
- Εύρος πίεσης : 2BAR/30PSI|5BAR/80PSI|10BAR/150PSI|25BAR/350PSI|30BAR/435PSI|150PSI/10BAR|400PSI/25BAR
- Τύπος σύνδεσης : Hirschmann 8pin
- Χρώμα : White|Black
- Διάμετρος : 52mm
Σχετικά Προϊόντα

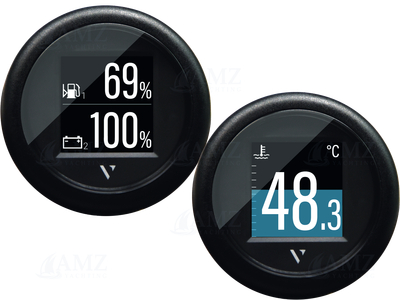

Single or dual layout presentation

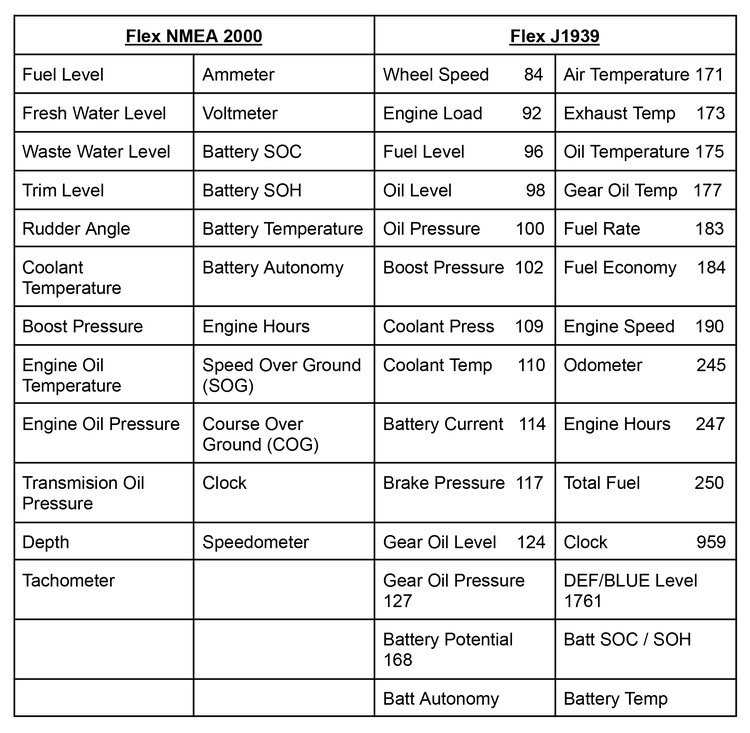

Wheel speed, Engine Load, Fuel Level, Oil Level, Oil Pressure, Boost Pressure, Coolant Pressure, Coolant Temperature, Battery Current, Brake Pressure, Gear Oil Level, Gear Oil Pressure, Battery Potential, Air Temperature, Exhaust Temperature, Oil Temperature, Gear Oil Temperature, Fuel Rate, Fuel Economy, Engine Speed, Odometer, Engine Hours, Total Fuel, Clock, DEF/BLUE Level, Battery SOC/SOH, Battery, Temperature, Battery Autonomy

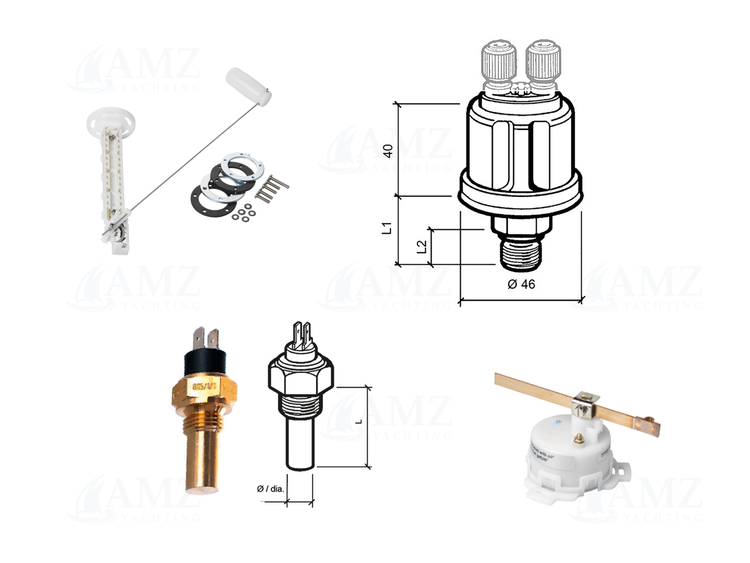

Analog connectivity
The supported analog inputs allow you to directly read from your engine sensors.
Frequency input:
Engine RPM sensors and Speed sensors
Resistive input:
Tank level, Temperature, Pressure, Rudder and Trim sensors
Digital network connectivity
The CAN interface expands this possibility by allowing the device to read from the digital network.
Lin connectivity:
Intelligent battery sensor
Can port:
NMEA 2000 or SAE J1939
NFC interface:
Contactless device configuration

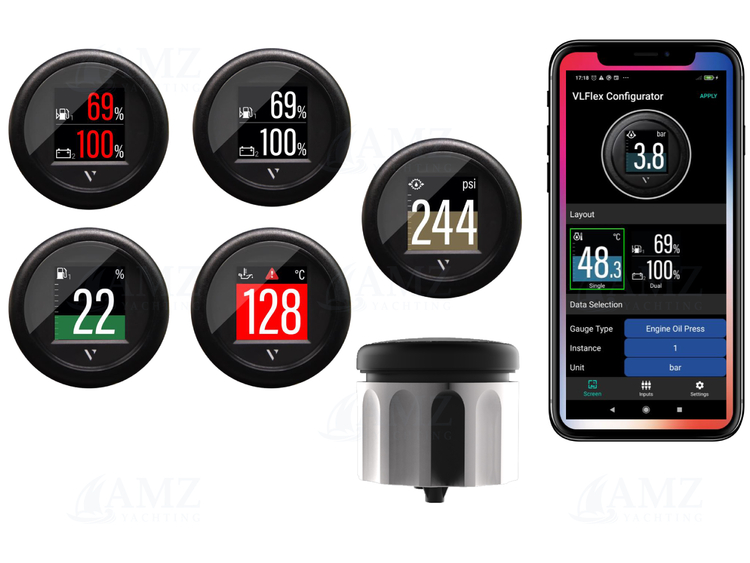

Contactless configuration
- Device configuration via smartphone companion app
- Setup your device with the user-friendly app
- "Tap" the smartphone onto the instrument lens to configure it instantly
Package content:
1x VL Flex J1939
1x 52 mm Mounting Spinlock
1x 8-pole cable
1x Safety instructions
104,03 €
