Περιγραφή

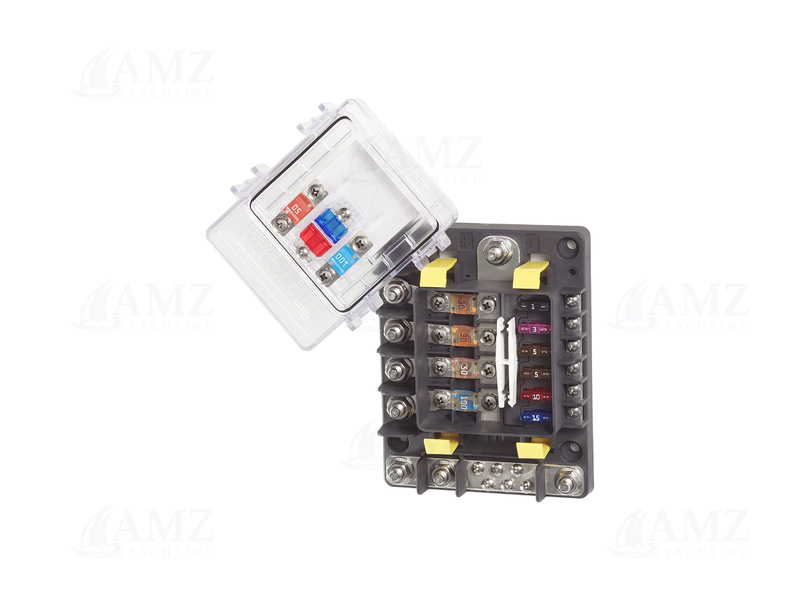

An ignition protected fuse block with screw termination safe for use on gasoline powered boats.
Features:
- Accepts four AMI® or MIDI® Fuses for high-amp circuits up to 200A
- Accepts six ATO® or ATC® Fuses for circuits up to 30A including bilge pumps, electronics and lights
- Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements
- Negative bus provides common location for negative connection
- Circuit identification label with write-on capability
- Fuse puller easily removes ATO® or ATC® Fuses
- Cover provides storage space for two spare ATO® or ATC® and two spare AMI® or MIDI® fuses and mounting screws
- One-piece stainless flange nuts ensure safe and secure connections
Χαρακτηριστικά
- Τάση λειτουργίας : 12V|24V
- Ενσωματωμένα χαρακτηριστικά : Negative bus
- Κύκλωμα : 10

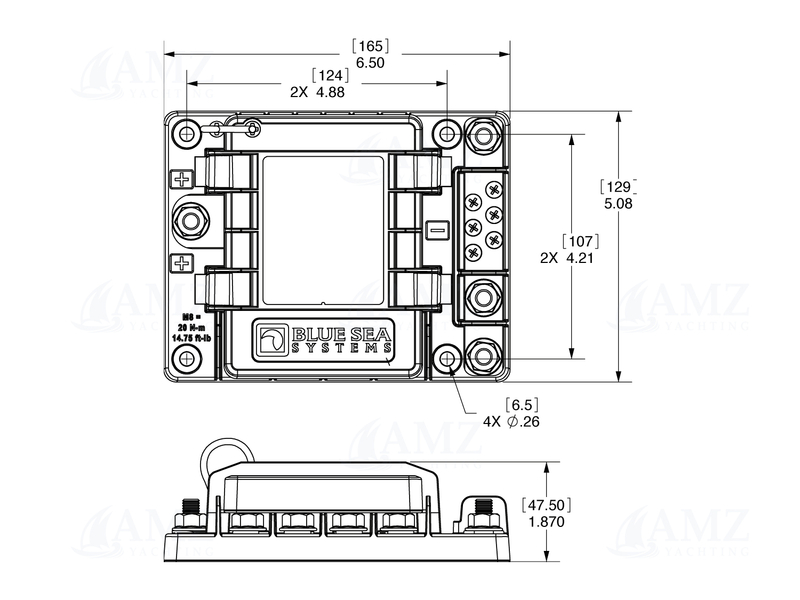

- Διαστάσεις : 165x129x47.50mm
- Βάρος : 1.59kg
