Blue Sea Systems

PowerBar 1000A

SKU: 1990
Διαθέσιμο
Προσθήκη στο Καλάθι

Περιγραφή

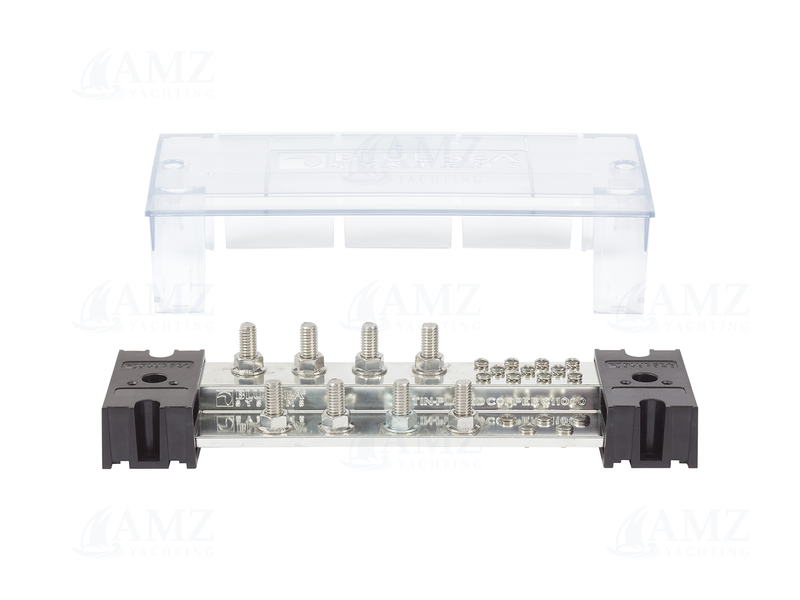

The PowerBar 1000 is a 1,000A busbar with various size studs and screws to connect a wide range of heavy cables and small wires together.


Features:

  • 1,000 Amp busbar for large complex wiring systems
  • Tin plated pure electrical copper for maximum conductivity
  • Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars
  • Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
  • One-piece serrated flange nuts ensure correct and secure connections
  • Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
  • Busbar may be cut to a shorter length to accommodate constricted spaces
  • Bi-directional busbar end caps allow the ganging of additional busbars
  • Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Χαρακτηριστικά

  • Τάση εισόδου : 150V DC
  • Τάση λειτουργίας : 12V|24V|48V
  • Σταθερό ρεύμα : 1000A
  • Κύκλωμα : Μονό
  • Σπείρωμα : 3/8"
  • Τερματικά : 24
  • Υλικό κατασκευής : Tin-plated copper

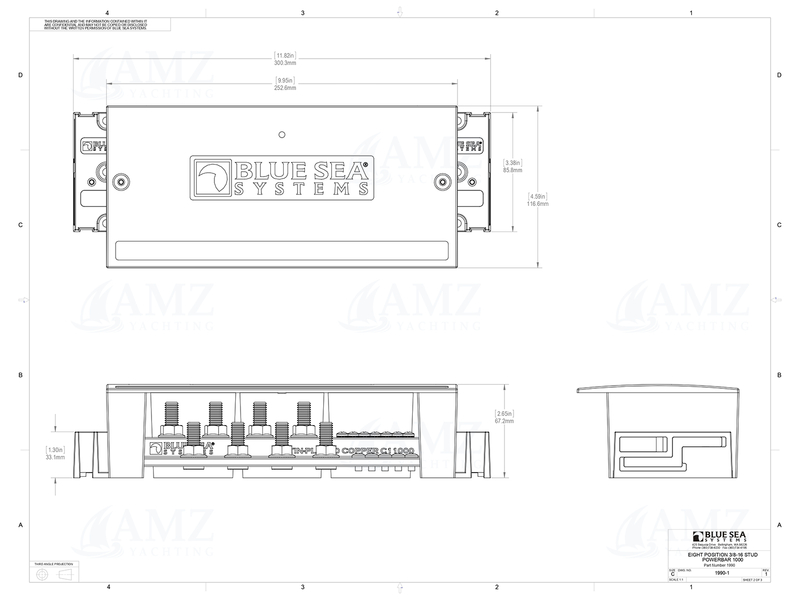

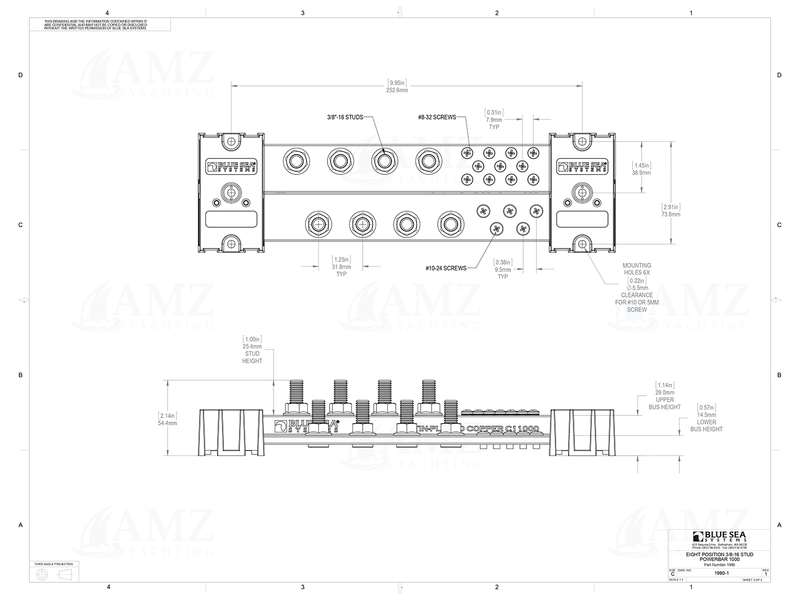

  • Διαστάσεις : 300.3x116.6x67.2mm
  • Βάρος : 2.72kg
229,64 €
