Περιγραφή

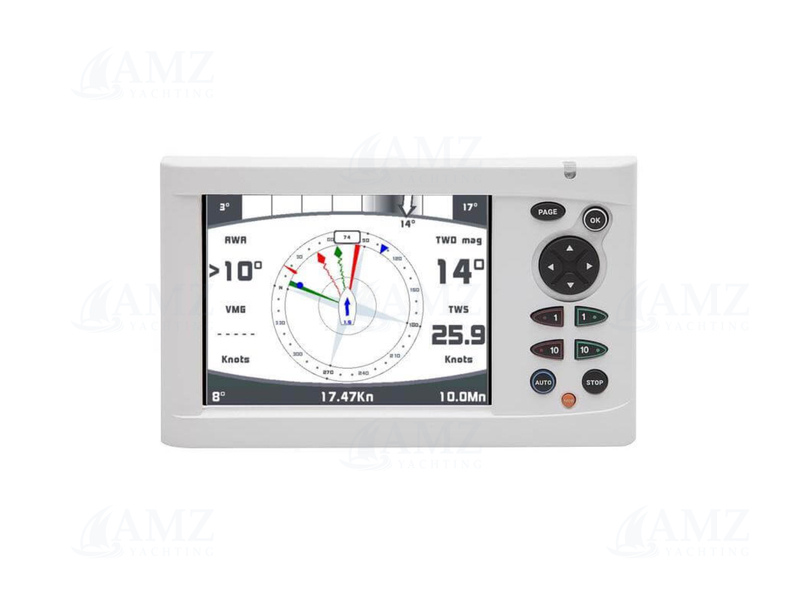

The Multigraphic is a multifunction device that allows:
- Control of the nke Gyropilot2 or Pilote HR
- Display of data from the sensors connected to the Topline bus in digital, analogue or graphic formats and access to setup parameters and alarms.
- Display and processing of A.I.S. target data in a 12 mile range for collision avoidance, providing there is an A.I.S. receiver connected.
- Interface to NMEA 183 devices to provide relevant data to the Topline bus.
Old product SKU:
90-60-359
Χαρακτηριστικά
- Τάση εισόδου : 8-32 VDC
- Μέγεθος οθόνης : 5.7"
- Συνδεσιμότητα : NMEA0183|Topline (NKE Bus)
- Είσοδοι NMEA0183 : 1x
- Ρυθμός μετάδοσης συμβόλων (Baud rate) : 4800 to 38400 bps
- Χρώμα : White
- Διαστάσεις : 192mm(L)x118mm(W)x23mm(H)
Έγγραφα
Package content:
1x Multigraphic display
1x 6m cable
1x Sun cover
1x Fixing bolt
