Περιγραφή

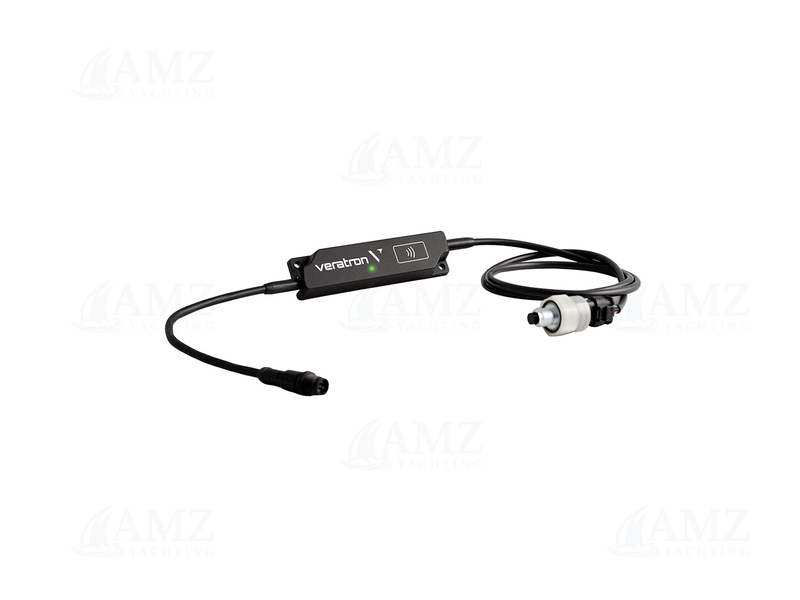

The LinkUp 2-in-1 measures simultaneously the engine oil temperature and pressure while providing the data to the linkup which translates it to the NMEA2000 standard.
The devise is designed to fit one specific sensor. This sensor measures temperature and pressure. It can be applied for engine- or transmission oil.
Χαρακτηριστικά
- Τάση λειτουργίας : 12V
- Κατανάλωση : ≤ 15 mA
- Συνδεσιμότητα : NMEA2000
- Έξοδοι NMEA2000 : Yes
- Μεταφορά/Μετατροπή δεδομένων : Analogue to NMEA2000
- Εύρος θερμοκρασίας : -40°C to +160°C
- Εύρος πίεσης : 0.5 to 10.5BAR
- Τύπος σύνδεσης : Micro-C (NMEA2000)|Hirschmann 3way 1.2

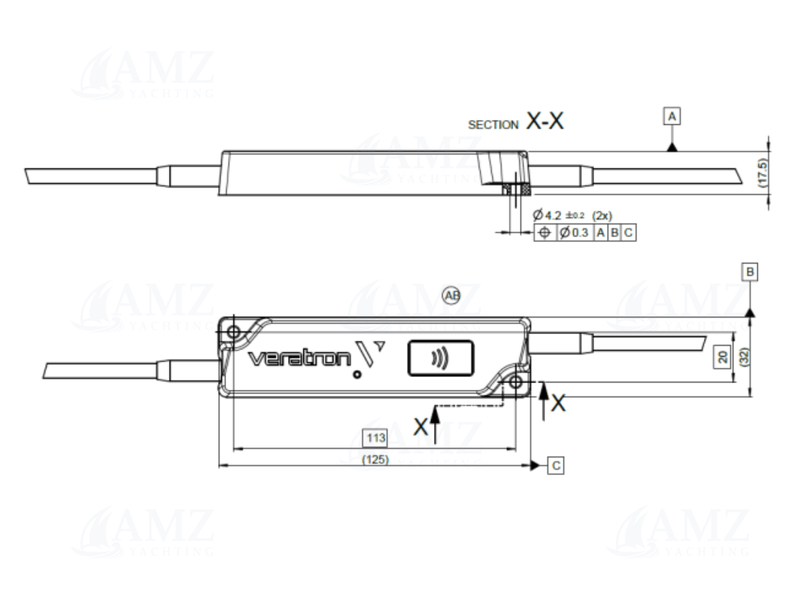

- Διαστάσεις : 125x17.5x32mm
Wireless configuration:
The parameters of the sensor are configured to type, instance and warning threshold on the mobile device and then tapped against the LinkUp device for instant data download.
