Περιγραφή

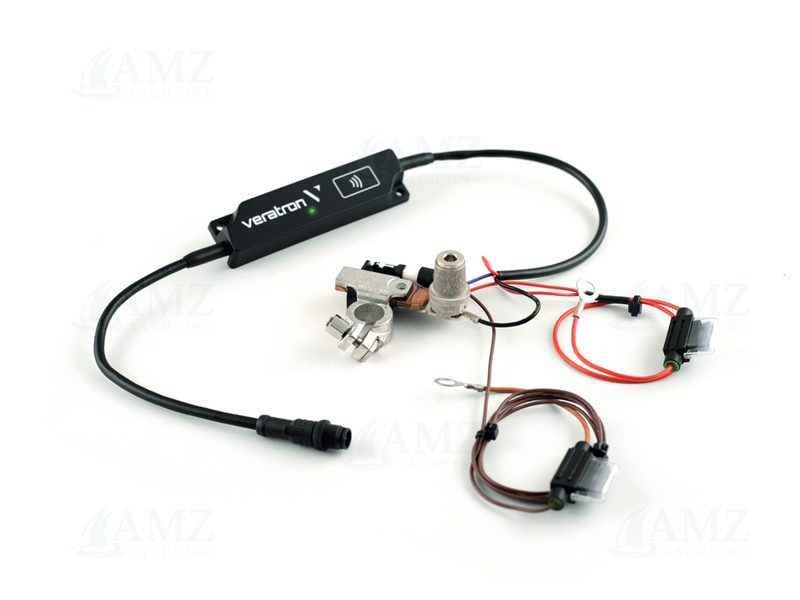

The Intelligent Battery Monitoring System, informs you about the current energy status, allowing you to plan your energy supply.
It is necessary to know its State of Charge, State of Health and any changes to the battery.
Delivered data:
-Battery Voltage
-Battery Current
-Battery Temperature
-State of Charge (SOC)
-State of Health (SOH)
-Autonomy
Supported battery types:
-Gel
-AGM
-Flooded (Lead)
Χαρακτηριστικά
- Τάση εισόδου : 7.5-32 V DC
- Τάση λειτουργίας : 24V
- Κατανάλωση : ≤ 16 mA
- Συνδεσιμότητα : NMEA2000|NFC|LIN Bus
- Έξοδοι NMEA2000 : Yes
- Τύπος εισόδου : IBS
- Χωρητικότητα : 255Ah - 24V IBS
- Σταθερό ρεύμα : +/-200A
- Μέγιστο ρεύμα (peak) : +/- 2000A - 24V IBS
- Σπείρωμα : M8 GND bolt
- Τύπος σύνδεσης : Micro-C (NMEA2000)
![banner banner](https://www.amz-eshop.com/storage/infocube_image_cache/750x422/i3commerce/images/d/i/diagram.jpg?ext=png&v=16092022234)
Connection & Diagram
The LinkUp interfaces the IBS sensor with the NMEA 2000® network to make all the information available for any display.
Wireless configurable, the Link Up gateway is also the access point for the configuration of the battery parameters.
The IBS after the simple electrical and mechanical integration, the sensor accurately measures the battery voltage, current and temperature parameters and internally calculates the State Of Charge, State Of Health and Time.
