Περιγραφή
The Cyrix-Li-Charge will connect a battery charger with 3 seconds delay:
- if the charge disconnect output of the VE.Bus BMS is high, and
- if it senses 13,0 V (resp. 26,0 V or 52,0 V) or more on its battery charger connection terminal, and
- if it senses 2 V or more on its battery terminal (the Cyrix will remain open if not connect to the battery).
Χαρακτηριστικά
- Τάση λειτουργίας : 12V|24V
- Κατανάλωση : < 4mA
- Σταθερό ρεύμα : 230A
- Σπείρωμα : M8 GND bolt

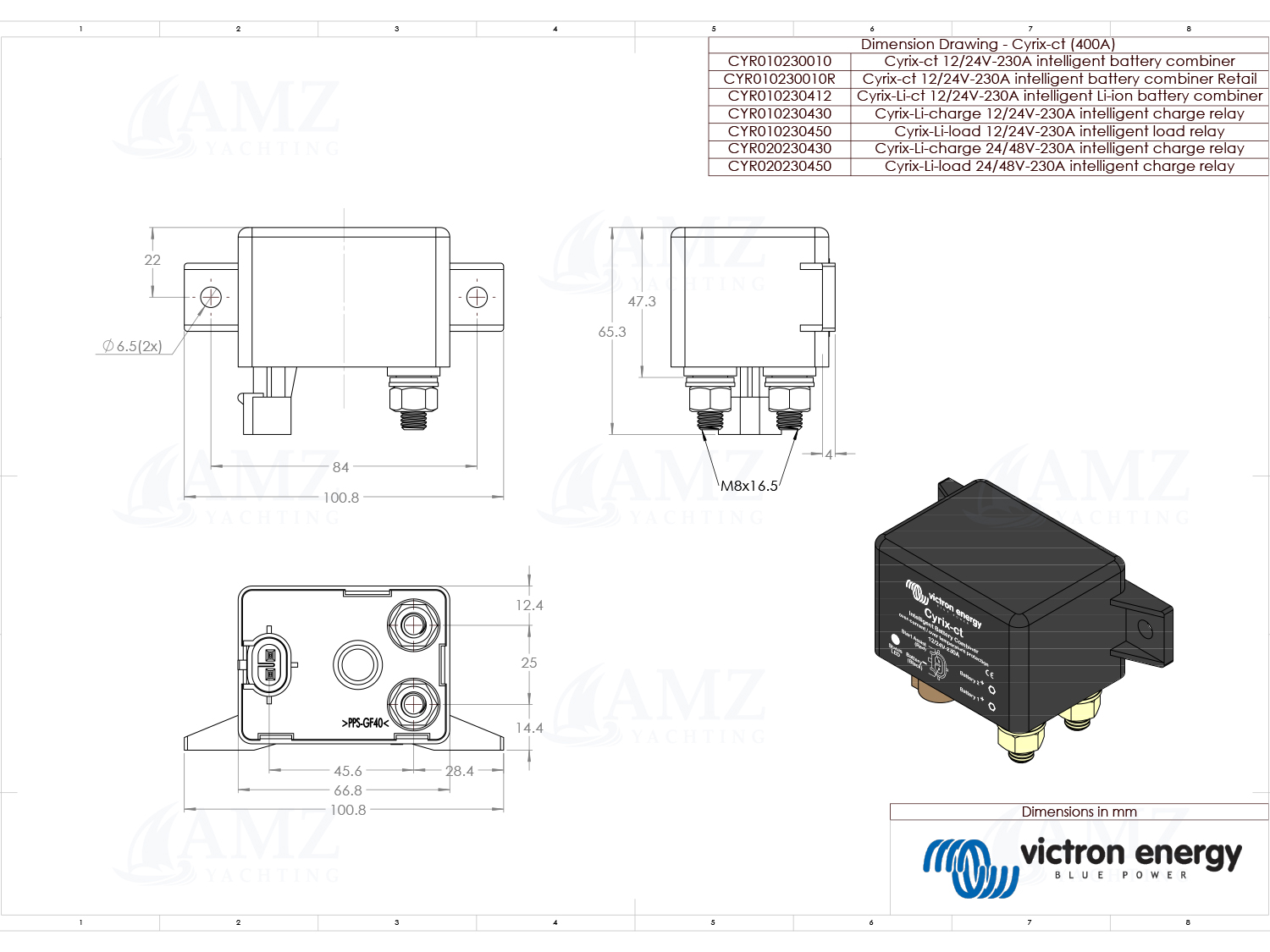

- Διαστάσεις : 100x65x50mm
- Βάρος : 0.27kg
